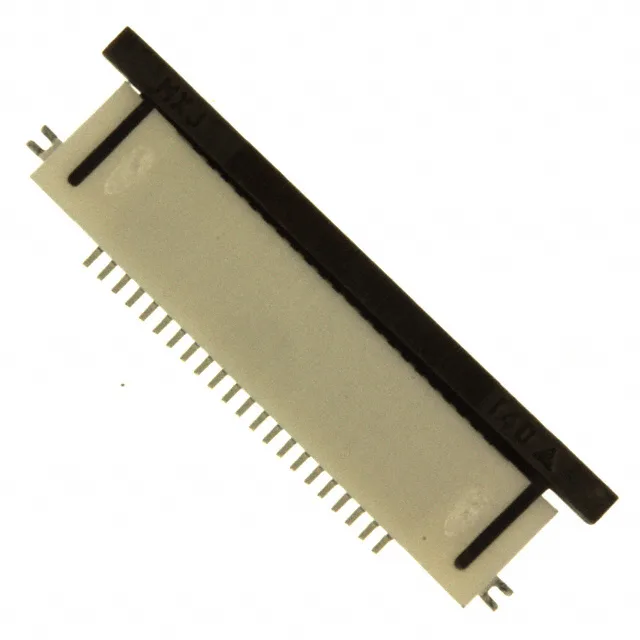

Molex 0524372272 Easy-On FFC Connector, 22-Pos 0.50mm

MPN0524372272
Active

Molex Easy-On 52437 FFC/FPC connector, order code 0524372272, 22 positions, 0.020" (0.50mm) pitch, 0.5 A, 50 V, tin bismuth bottom contacts, surface-mount right-angle, ZIF flip lock actuation, solder termination.

$2.0000Ref. price · indicative, final on quote
0524372272 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0524372272 Technical Specifications
ParameterValue
SeriesEasy-On 52437
Mounting typeSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-40°C ~ 85°C
Housing colorWhite
Actuator colorBrown
Contact materialPhosphor Bronze
Housing materialPolyamide (PA46), Nylon 4/6, Glass Filled
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled
Height above board0.079\" (2.00mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin Bismuth
Locking featureFlip Lock
FFC, FCB thickness0.30mm
Positions22

Product details

ZIF flip lock at 0.50 mm pitch

The 0524372272 is the 22-position member of Molex's Easy-On 52437 FFC/FPC connector line, using a zero-insertion-force (ZIF) flip-lock actuator that secures the flex cable without insertion force. Rated 0.5 A per contact at 50 V, it accepts 0.30 mm thick FFC or FPC with bottom-side contacts and mounts surface-mount right-angle, standing 0.079" (2.00 mm) above the board.

Board-fit and routing density

At 0.020" (0.50 mm) pitch, the 22 circuits route through a narrow footprint — the ZIF actuator and solder retention pads keep the connector seated during reflow and cable insertion without a secondary latch.

Temperature range and materials

The housing is glass-filled PA46 rated UL94 V-0, the actuator is glass-filled PPS, and the contacts are phosphor bronze with tin bismuth finish. Operating range spans -40°C to 85°C.

Frequently asked questions

What is the mating cycle rating for the 0524372272?

The connector is rated for 20 mating cycles — the tin bismuth contact finish and ZIF actuation keep wear low for moderate reconnect duty in production or field service.

Does the 0524372272 accept both FFC and FPC cables?

Yes, the connector accepts both flat flex types (FFC and FPC) with a 0.30 mm thickness and straight cable end, using bottom-side contacts.

What compliance documentation does Molex provide for this part?

The housing carries UL94 V-0 flammability rating. RoHS and REACH compliance documentation is available from Molex for the 0524372272.
