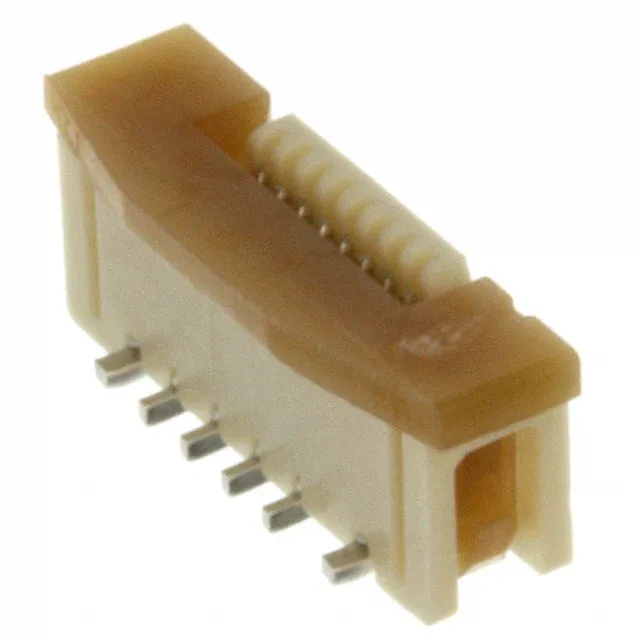

0525590870 — Molex product photo
Molex

Molex 0525590870 Easy-On FFC/FPC Connector, 8 Pos 0.50mm

MPN0525590870
Active

Molex Easy-On 52559 FFC / FPC connector, order code 0525590870, 8 positions, 0.50 mm pitch, 0.5 A, 50 V, tin bismuth contact finish, surface-mount vertical, solder termination, ZIF actuation.

$1.2300Ref. price · indicative, final on quote
0525590870 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0525590870 Technical Specifications
ParameterValue
SeriesEasy-On 52559
Mounting typeSurface Mount
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating50V
Current rating0.5A
Operating temperature-40°C ~ 85°C
Contact materialPhosphor Bronze
Housing materialPolyamide (PA46), Nylon 4/6
Actuator materialPolyphenylene Sulfide (PPS)
Height above board0.154\" (3.90mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin Bismuth
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions8
Contact finish thickness39.4µin (1.00µm)

Product details

8-position ZIF at 0.50 mm pitch

The 0525590870 is the 8-circuit member of Molex's Easy-On 52559 FFC / FPC connector series, a vertical SMT ZIF socket accepting 0.30 mm thick flat flex cable. Rated 0.5 A per contact at 50 V with tin bismuth plating on phosphor bronze contacts, the connector mates 20 cycles and operates from -40 °C to 85 °C.

Cable fit and board footprint

The 0.50 mm pitch and 3.90 mm height above board set the routing density and z-height budget. The slide lock secures the FFC or FPC with straight or tapered cable end types.

Frequently asked questions

What compliance documentation does Molex provide for 0525590870?

The connector is ROHS3 Compliant. The housing material is Polyamide (PA46) rated UL94 V-0; the actuator is Polyphenylene Sulfide (PPS).
