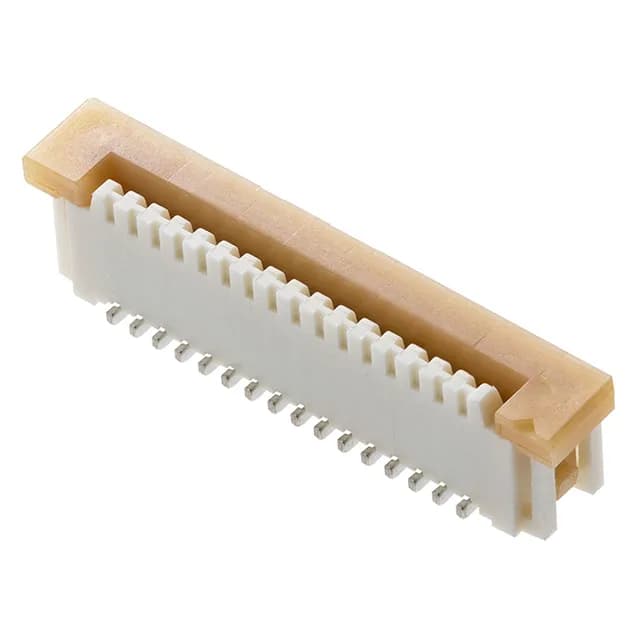

Molex 0526100834
MPN0526100834
Active
$1.5800Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Easy-On 52610 |
| Mounting | Surface Mount |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Housing color | White |
| Actuator color | Brown |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
| Actuator material | Polyphenylene Sulfide (PPS), Glass Filled |
| Height above board | 0.226\" (5.74mm) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.039\" (1.00mm) |
| Features | Zero Insertion Force (ZIF) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Molex |
| Contact finish | Tin Bismuth |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 8 |
| Contact finish thickness | 39.4µin (1.00µm) |
