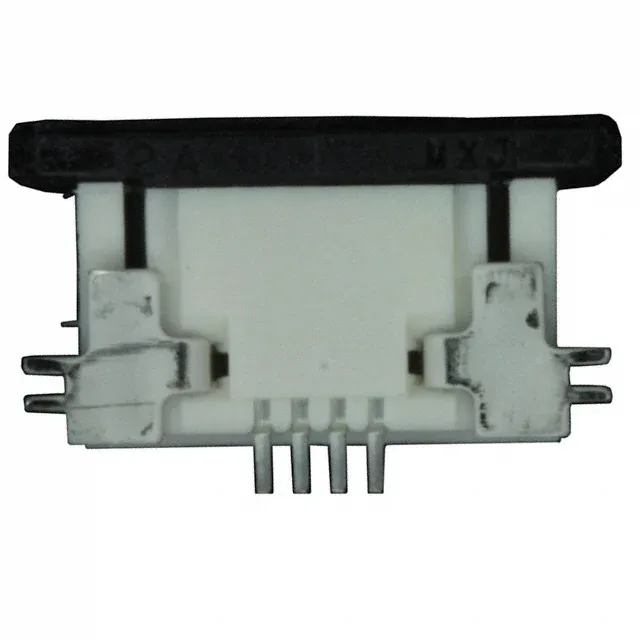

Molex 0527450496 Easy-On 52745 FFC/FPC Connector, 4 Pos

MPN0527450496
Active

Molex Easy-On 52745 FFC/FPC connector, order code 0527450496, 4 positions, 0.020" (0.50mm) pitch, 0.5 A, 50 V, tin bismuth contacts, top contact, surface-mount right-angle, solder termination, ZIF actuation.

$0.8600Ref. price · indicative, final on quote
0527450496 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0527450496 Technical Specifications
ParameterValue
SeriesEasy-On 52745
Mounting typeSurface Mount, Right Angle
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating50V
Current rating0.5A
Operating temperature-20°C ~ 85°C
Housing colorWhite
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA46), Nylon 4/6, Glass Filled
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled
Height above board0.079\" (2.00mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin Bismuth
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions4

Product details

Zero-insertion-force top-contact FFC/FPC connector

The 0527450496 is the 4-position member of Molex's Easy-On 52745 FFC/FPC connector line, a ZIF top-contact design on 0.020" (0.50mm) pitch. Rated 0.5 A per contact at 50 V with tin bismuth plating on phosphor bronze contacts, the connector accepts 0.30 mm FFC and mounts surface-mount right-angle with solder termination.

Locking and FFC fit

A slide lock secures the FFC after insertion; the ZIF actuator requires no insertion force on the flex circuit. The mated height above board is 0.079" (2.00mm). The housing carries a UL94 V-0 flammability rating and operates from -20°C to 85°C.

Frequently asked questions

What compliance documentation does Molex provide for 0527450496?

The part is ROHS3 Compliant. The housing material is polyamide (PA46) glass-filled rated UL94 V-0; actuator material is PPS glass-filled. Full RoHS and material declarations are available through the product drawing.
