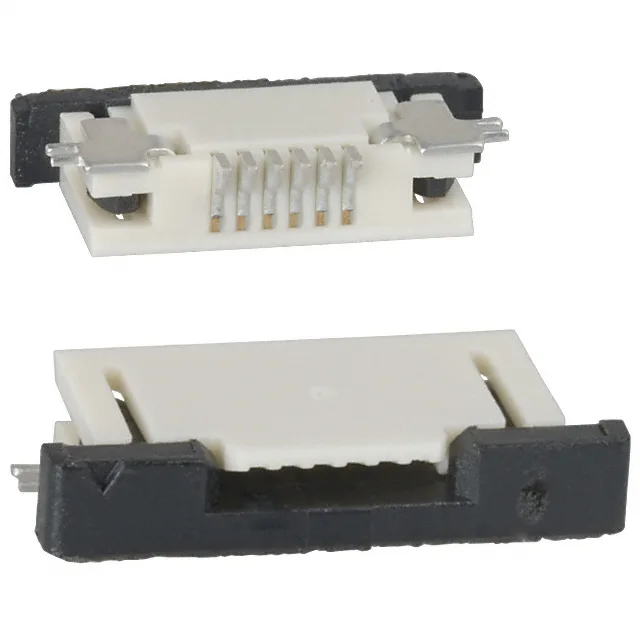

Molex 0527451096 Easy-On FFC/FPC Connector, 10 Pos, 0.5mm

MPN0527451096
Active

Molex Easy-On 52745 FFC/FPC connector, order code 0527451096, 10 positions, 0.50 mm pitch, 0.5 A, 50 V, tin bismuth contacts, top-contact, ZIF actuation, surface-mount right-angle, solder termination.

$1.2400Ref. price · indicative, final on quote
0527451096 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0527451096 Technical Specifications
ParameterValue
SeriesEasy-On 52745
Mounting typeSurface Mount, Right Angle
Cable end typeStraight, Tapered
Flat flex typeFFC, FPC
Connector (Contact type)Contacts, Top
Voltage rating50V
Current rating0.5A
Operating temperature-20°C ~ 85°C
Housing colorWhite
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA46), Nylon 4/6, Glass Filled
Actuator materialPolyphenylene Sulfide (PPS), Glass Filled
Height above board0.079\" (2.00mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishTin Bismuth
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions10

Product details

0.50 mm pitch, 10-position ZIF FFC/FPC connector

The 0527451096 is the 10-position member of Molex's Easy-On 52745 FFC/FPC connector line, using a zero-insertion-force (ZIF) slide-lock actuator for top-contact termination. Rated 0.5 A per contact at 50 V, it accepts 0.30 mm thick FFC or FPC cable and mounts surface-mount right-angle with solder retention features.

ZIF actuation and cable fit

The slide-lock actuator secures the FFC or FPC without insertion force — the contact beam wipes the pad during lock engagement. The top-contact interface accepts straight or tapered cable ends at 0.30 mm thickness. 20 mating cycles are specified with the tin bismuth contact finish; the 0.50 mm pitch limits per-contact current to 0.5 A, consistent with the narrow-pitch FFC connector class.

Frequently asked questions

What FFC thickness does the 0527451096 accept?

It accepts 0.30 mm thick FFC or FPC cable with straight or tapered ends.

What compliance documentation does Molex provide for 0527451096?

The part is ROHS3 compliant and the housing material carries UL94 V-0 flammability rating.
