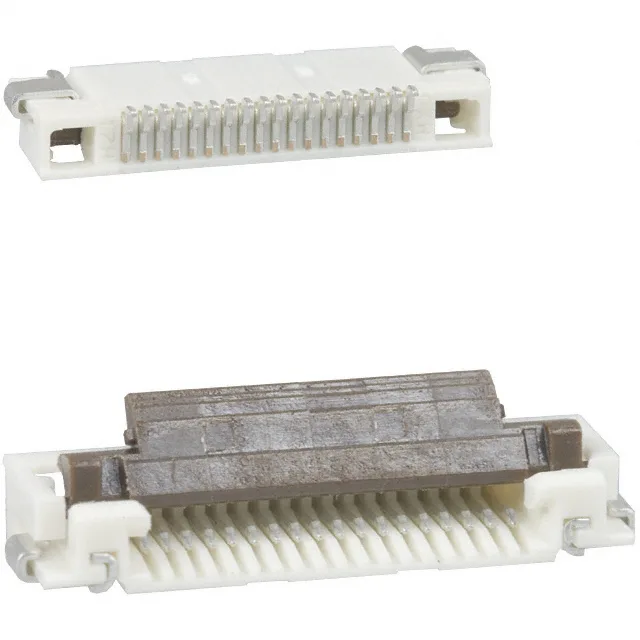

Molex 0528921895
MPN0528921895
Obsolete
$1.3100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Easy-On 52892 |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight, Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA46), Nylon 4/6 |
| Actuator material | Polyphenylene Sulfide (PPS) |
| Height above board | 0.079\" (2.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Bulk |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Tin Bismuth |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 18 |
