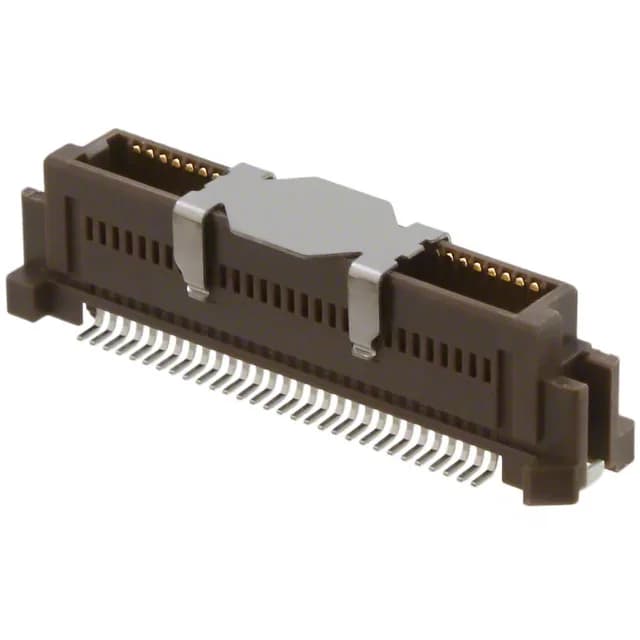

Molex, SlimStack 53647 series, plug with outer shroud contacts, 60 positions, 0.025" (0.64mm) pitch, 2 rows, surface mount, gold 10.0µin plating, board guide and solder retention features, mated stacking heights 8mm and 14mm.
| Parameter | Value |
|---|---|
| Series | SlimStack 53647 |
| Mounting | Surface Mount |
| Connector type | Plug, Outer Shroud Contacts |
| Height above board | 0.275\" (6.99mm) |
| Mated stacking heights | 8mm, 14mm |
| Pitch | 0.025\" (0.64mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 60 |
| Contact finish thickness | 10.0µin (0.25µm) |
The 0536470674: The connector stands 0.275" (6.99mm) above the board and supports mated stacking heights of 8mm and 14mm, giving the layout engineer two common envelope options without changing the base footprint.
The 0536470674 is a plug with outer shroud contacts. It mates with a SlimStack 53647 receptacle of the same 60-position, 0.64mm pitch layout. Confirm the receptacle order code against your board stack height requirement (8mm or 14mm mated height).
