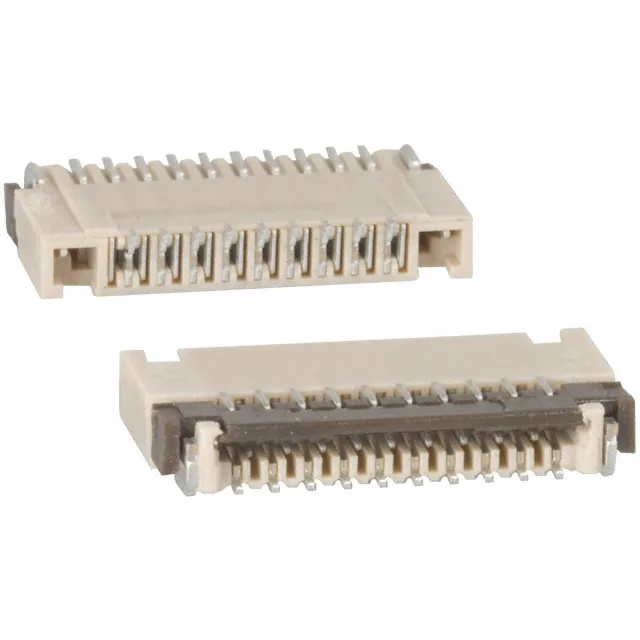

Molex 0548091998
MPN0548091998
Obsolete
$2.2100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Easy-On 54809 |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.3A |
| Operating temperature | -20°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP) |
| Actuator material | Polyamide (PA46), Nylon 4/6 |
| Height above board | 0.051\" (1.30mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.012\" (0.30mm) |
| Package | Bulk |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Tin Bismuth |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.20mm |
| Positions | 19 |
