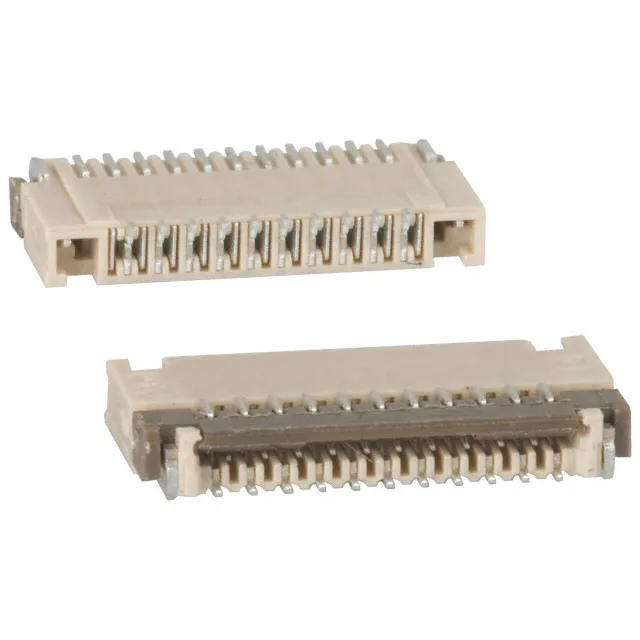

Molex Easy-On 54809 FPC connector, order code 0548092198, 21 positions, 0.012" (0.30mm) pitch, 0.3 A, 50 V, tin bismuth bottom contacts, zero insertion force (ZIF) flip lock, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Easy-On 54809 |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.3A |
| Operating temperature | -20°C ~ 85°C |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP) |
| Actuator material | Polyamide (PA46), Nylon 4/6 |
| Height above board | 0.051\" (1.30mm) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.012\" (0.30mm) |
| Package | Bulk |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Tin Bismuth |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.20mm |
| Positions | 21 |
The 0548092198 is the 21-circuit member of Molex's Easy-On 54809 FPC connector series. Rated 0.3 A per contact at 50 V with tin bismuth bottom contacts, the ZIF flip-lock actuator accepts 0.20 mm FPC and holds the ribbon without insertion force.
Available through independent surplus channels; quantities are lot-specific and confirmed at RFQ.
The 0548092198 is the 21-position member of the series; other position counts share the same 0.30 mm pitch and ZIF flip-lock design but differ in circuit count and footprint.
