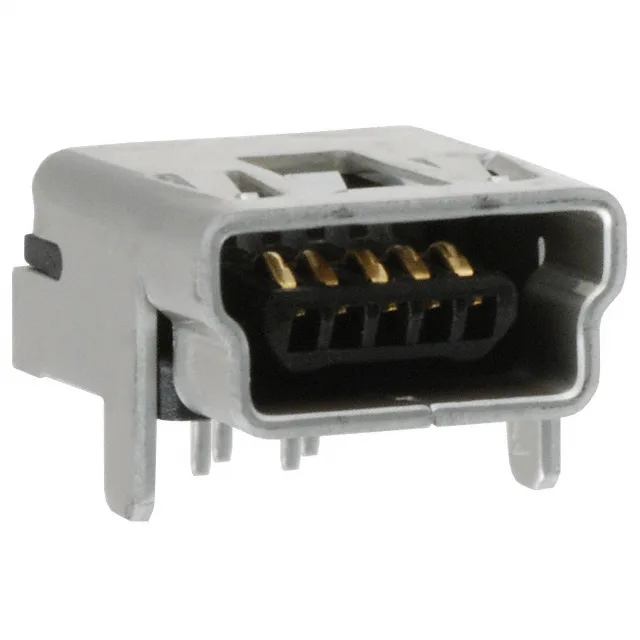

0548190511 — Molex product photo
Molex

Molex 0548190511 USB mini-B Receptacle, 5 contacts, 1A

MPN0548190511
Obsolete

Molex 54819 series USB - mini B receptacle, 5 contacts, 1 A, 30 V, through hole right angle, shielded, gold contact finish, tray.

$2.1000Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0548190511 Technical Specifications
ParameterValue
Series54819
Mounting typeThrough Hole, Right Angle
Connector typeUSB - mini B
Voltage - rated30V
Current rating1A
Positions5
Mounting featureHorizontal
Operating temperature0°C ~ 50°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
ShieldingShielded
TerminationSolder
Contact finishGold
SpecificationsUSB 2.0 OTG
Number of ports1

Product details

The Molex 0548190511 is a USB - mini B receptacle from the 54819 series, designed for USB 2.0 OTG applications. It carries 5 contacts in a single port, rated at 1 A and 30 V — typical for USB 2.0 signal and low-power charging. The through-hole, right-angle mounting with a horizontal orientation places the port flush against the board edge, common for panel-mounted USB jacks on consumer devices like set-top boxes, printers, or portable equipment. The shielded copper alloy shell helps contain EMI within the 2.0 signal bandwidth, and the gold-plated contacts resist corrosion over repeated mating cycles.

No direct replacement or successor is listed. For a new design, consider active 54819-series variants or a different USB connector family with the same footprint — but no pin-compatible substitute is documented.

This orientation is standard for edge-mounted USB ports where the cable enters from the side of the enclosure.
