Molex 0559090840

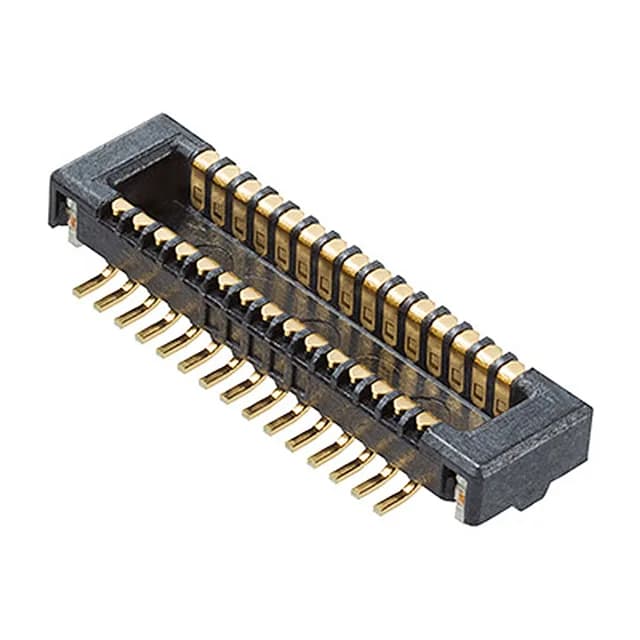

Molex SlimStack 0559090840 Plug, 80 Pos, 0.40mm Pitch

MPN 0559090840
Active

Molex SlimStack 55909 series, plug with outer shroud contacts, 80 positions, 2 rows, 0.016" (0.40mm) pitch, surface mount, gold 15.0µin (0.38µm) contact finish, 0.045" (1.14mm) height above board, solder retention features.

$2.8400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesSlimStack 55909
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0559090840 specifications
ParameterValue
SeriesSlimStack 55909
MountingSurface Mount
Connector typePlug, Outer Shroud Contacts
Height above board0.045\" (1.14mm)
Mated stacking heights1.5mm
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
Contact finishGold
Rows2
Positions80
Contact finish thickness15.0µin (0.38µm)

Product details

The Molex 0559090840 is an 80-circuit plug from the SlimStack 55909 series, designed as the top half of a board-to-board mezzanine connection. The 0.045" (1.14mm) height above board and 1.5mm mated stacking height define the z-axis clearance between parallel PCBs — typical for compact handheld or portable device internals where board spacing is tight.

The 0.40mm pitch demands precise PCB land patterns and solder paste stencil design — standard FR-4 processes can handle it, but the tight spacing means trace routing between pads is limited. The 1.5mm mated stack height sets the mezzanine gap; the plug's 1.14mm height above board leaves 0.36mm for the mating receptacle's height. This stack is fixed — there is no height adjustment option within the series for this position count.
