USB-B Receptacle with Board Lock and Shielding

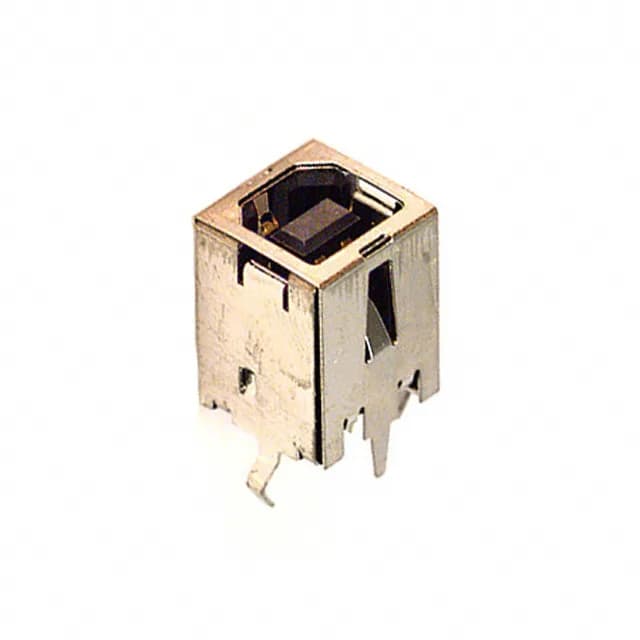

The Molex 0672650000 is a USB-B (USB TYPE-B) receptacle from the 67265 series, offering 4 contacts in a single port with vertical through-hole mounting and solder termination. It carries a current rating of 1.5A per contact at 30V, with gold-plated contacts for corrosion resistance over repeated mating cycles. The shielded shell — copper alloy — and integrated board lock provide mechanical retention and EMI containment, making it suited for panel-mount or board-edge USB-B interfaces in equipment that sees moderate vibration or frequent cable insertion.
Lifecycle and Sourcing — Obsolete, No Direct Replacement
The 0672650000 is marked Obsolete in the lifecycle record. No official successor or cross-reference part number is listed for this Molex 67265 series USB-B receptacle.
Board Lock and Shielding — Mechanical and EMI Considerations
The shielded shell with copper alloy construction provides a low-impedance path to ground, reducing radiated emissions from the USB differential pair.
