Molex 0676432911 — USB / HDMI Cable Assemblies

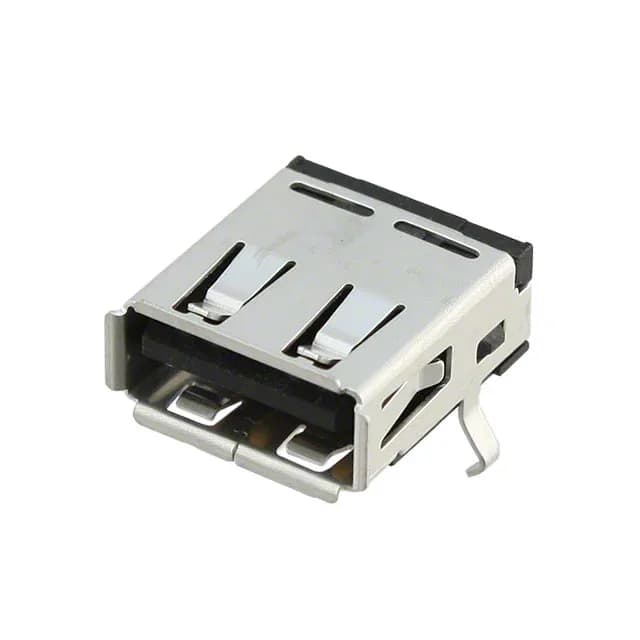

Molex 0676432911 USB-A Receptacle, 4 Pos R/A, Shielded

MPN0676432911
Active

Molex 67643 series USB-A (Type-A) receptacle, 4 contacts, 1 port, right-angle through-hole, shielded, board lock, gold contact finish, 1.5A 30VDC, -40°C to 85°C, UL94 V-0.

$2.1400Ref. price · indicative, final on quote
Molex 0676432911 datasheet (PDF)
RoHSROHS3 Compliant
Series67643
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0676432911 specifications
ParameterValue
Series67643
MountingThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VDC
Current rating1.5A
Positions4
Mounting featureHorizontal
Operating temperature-40°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Contact finishGold
Number of ports1

Product details

USB-A Receptacle, Shielded, Right-Angle — Molex 0676432911

The Molex 0676432911 is a single-port USB-A (USB TYPE-A) receptacle from the 67643 series, carrying 4 contacts in a right-angle through-hole package. The shielded shell — copper alloy — and board lock feature are designed to keep the connector anchored and the signal path contained on the PCB.

Right-Angle Mount with Board Lock

Right-angle orientation places the USB port parallel to the PCB — typical for edge-mounted or low-profile panel cutouts. The board lock provides mechanical retention during solder reflow and resists shear force from cable insertion and removal. Termination is solder to through-hole pads, a standard method for USB connectors that need a robust mechanical bond to the board.

Shielding and USB Compatibility

The shielded shell (copper alloy) reduces radiated emissions and susceptibility. The 1.5A rating per contact covers standard USB power with headroom; the 30VDC rating exceeds the 5V typical of USB buses.

Frequently asked questions

What is the lifecycle status of Molex 0676432911? Is it active or obsolete?

Buyers need to know if the part is available for new designs or if replacement is needed.

What is the pinout of Molex 0676432911?

Design engineers must verify pin assignment to ensure PCB layout compatibility.

Where can I buy the Molex 0676432911 with stock?

Sourcing buyers need immediate availability and lead times to fulfill BOM requirements.

What are the equivalent or cross-reference parts for Molex 0676432911?

Engineers and buyers need alternatives for cost savings or supply chain redundancy.

Is the 0676432911 shielded and suitable for USB 2.0/3.0?

Compliance with USB standard and EMI requirements is critical for design acceptance.

What is the current market price and distributor pricing for Molex 0676432911?

Buyers require price data for budgeting and procurement decisions.
