Molex 0676433910 — USB, Type-C & HDMI Connectors

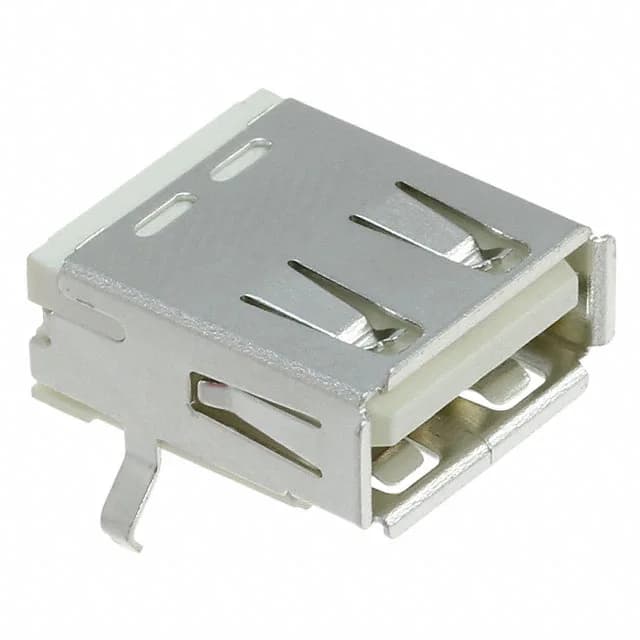

Molex 0676433910 USB-A Receptacle, 4 Contacts, Right-Angle

MPN0676433910
Active

Molex 67643 USB-A (USB TYPE-A) receptacle, 4 contacts, 1.5A, 30VDC, right-angle through-hole, shielded, board lock, tray.

$1.7500Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0676433910 key specifications
ParameterValue
Series67643
MountingThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VDC
Current rating1.5A
Positions4
Mounting featureHorizontal
Operating temperature-40°C ~ 85°C
Insulation colorWhite
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle

All specifications

0676433910 additional specifications
ParameterValue
FeaturesBoard Lock
PackageTray
ShieldingShielded
TerminationSolder
ManufacturerMolex
Contact finishGold
Number of ports1

Product details

It carries 4 contacts, the classic USB 2.0 pinout (VBUS, D-, D+, GND), rated 1.5A at 30VDC. Board locks on the solder tabs anchor the connector through reflow and repeated cable insertions — without them, the shear force from a stiff USB cable can lift the pads over time.

Why the 1.5A Rating Matters

At 1.5A per port, this is a USB 2.0 power envelope — enough to charge a phone or power a thumb drive, but not the 3A+ that USB 3.0 BC 1.2 or USB-C PD demands. The 30VDC voltage rating covers the 5V USB bus with plenty of headroom; the limiting factor is the contact-beam current capacity and the temperature rise inside the housing. If your design needs higher charging current, look at a USB-C receptacle rated 3A or more.

The white insulator colour is a visual aid for alignment on the pick-and-place line, though the part ships in tray packaging, not tape-and-reel.

Frequently asked questions

Does the Molex 0676433910 have board locks?

Yes, the 0676433910 includes board-lock features — solder anchors on the mounting tabs that provide mechanical retention against cable insertion and extraction forces.
