What This SL-Series Plug Housing Is
Panel Mounting and Termination
The crimp termination means the wire is attached to the terminal before insertion into the housing, which is standard for field-serviceable harnesses.

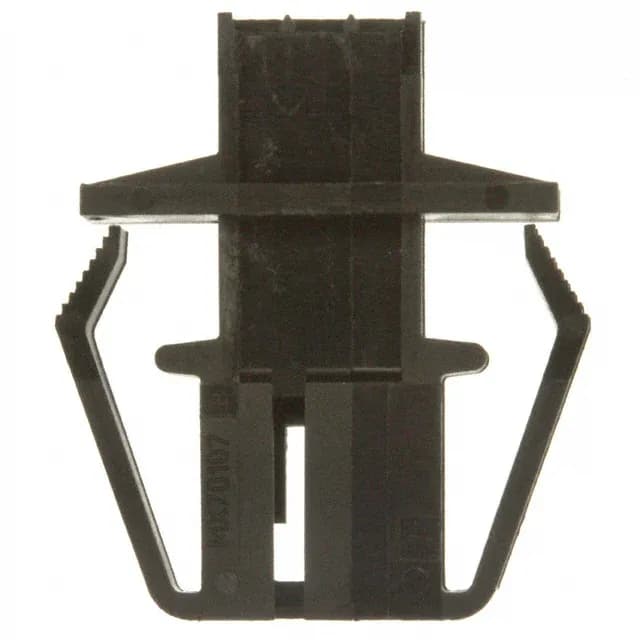

Molex SL 70107 0701070037, 3-Pos Plug Housing, 2.54mm
MPN0701070037
Active
Molex SL 70107 series, plug housing, 3 positions, 1 row, 0.100" (2.54mm) pitch, panel mount, crimp termination, black polyester, -40°C to 105°C.
$1.5800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSL 70107
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SL 70107 |
| Type | Male Pin |
| Mounting | Panel Mount |
| Connector type | Plug |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Polyester |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 3 |
Product details
Frequently asked questions
What contacts are compatible with Molex 0701070037?
The 0701070037 is a housing only — contacts are not included. It accepts SL-series male pin crimp terminals (Molex order codes starting with 70058 or similar), which must be ordered separately and crimped onto the wire before insertion into the housing.
What is the mating connector for Molex 0701070037?
The exact mating half depends on whether the application is wire-to-wire (receptacle housing with female terminals) or wire-to-board (vertical or right-angle PCB header).
Where can I buy Molex 0701070037?
This part is sourced to order against your RFQ.
