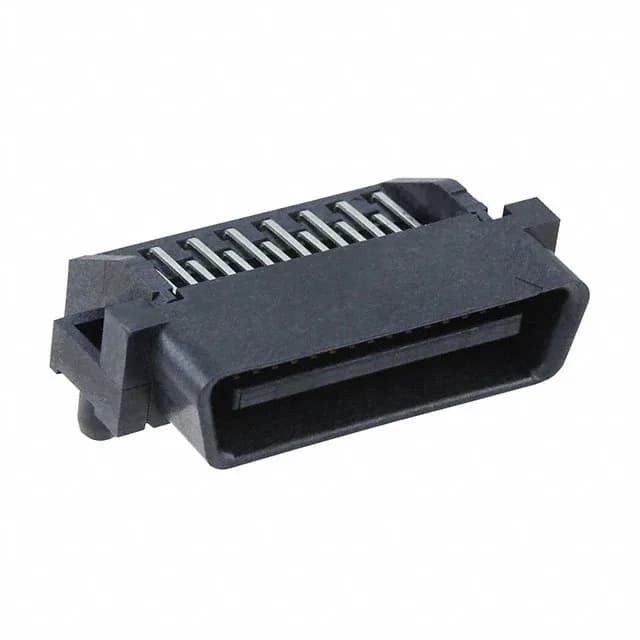

Molex EBBI 71661 series, Board to Board plug, 30 positions, 2 rows, Through Hole, Right Angle, Solder termination, Gold 30.0µin contact finish.
| Parameter | Value |
|---|---|
| Type | Board to Board |
| Series | EBBI 71661 |
| Mounting | Through Hole, Right Angle |
| Connector type | Center Strip Contacts |
| Package | Tray |
| Features | Board Guide |
| Termination | Solder |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 30 |
| Contact finish thickness | 30.0µin (0.76µm) |
The Molex 0716612030 is a 30-position plug from the EBBI 71661 series, designed for board-to-board interconnects. It uses a center strip contact arrangement across two rows, terminated by through-hole solder tails.
The Molex 0716612030 is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — both are confirmed at quote time.
Yes, the 0716612030 is a through-hole, right-angle plug. The connector body sits perpendicular to the PCB, with solder tails exiting the rear for board mounting.
