Molex EBBI 71661 series, Plug, Center Strip Contacts, 30 positions, 2 rows, 0.050" (1.27mm) pitch, Through Hole, Gold 30.0µin contact finish, 0.362" (9.20mm) height above board.
| Parameter | Value |
|---|---|
| Series | EBBI 71661 |
| Mounting | Through Hole |
| Connector type | Plug, Center Strip Contacts |
| Height above board | 0.362\" (9.20mm) |
| Pitch | 0.050\" (1.27mm) |
| Package | Tray |
| Features | Board Guide |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 30 |
| Contact finish thickness | 30.0µin (0.76µm) |

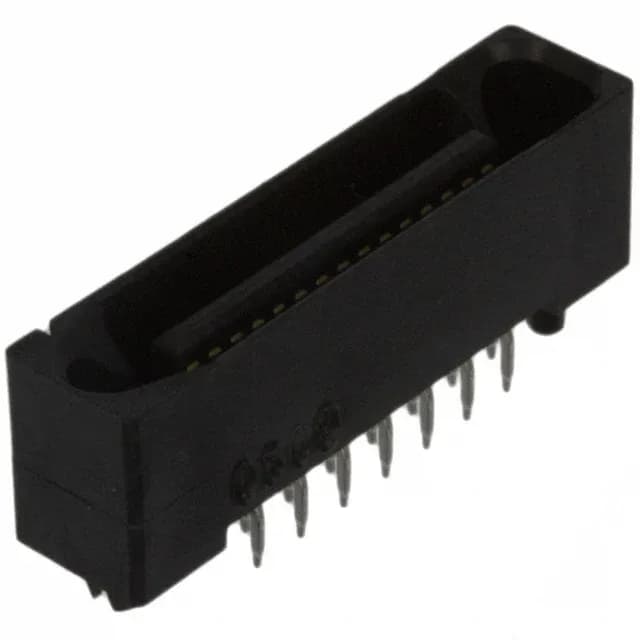

The Molex 0716617030 is a 30-position plug from the EBBI 71661 series, designed as a board-to-board mezzanine interconnect. The through-hole mounting and 0.362" (9.20mm) height above board define the stack height for the opposing PCB — a key dimension for enclosure clearance and component keep-out on the underside.
This plug mates with the matching EBBI 71661 receptacle — a 30-position, dual-row, center-strip-contact receptacle at the same 0.050" (1.27mm) pitch.
