Molex 0732760161

Molex 0732760161 N-Type Jack, 50 Ohm, 11 GHz

MPN 0732760161
Active

Molex 73276 Series N-Type jack, female socket, 50 Ohm, DC to 11 GHz, 1000 V, panel mount, solder contact, crimp shield, includes mounting hardware for LMR-400 cable.

$19.4700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0732760161 key specifications
ParameterValue
Series73276
MountingPanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating1000 V
Frequency - max11 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupLMR-400
Operating temperature-55°C ~ 125°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)

All specifications

0732760161 additional specifications
ParameterValue
Center contact materialBeryllium Copper
Includes6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut, 1 Spacer
Impedance50 Ohms
PackageBulk
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

RF connector kit for LMR-400 — what is in the box

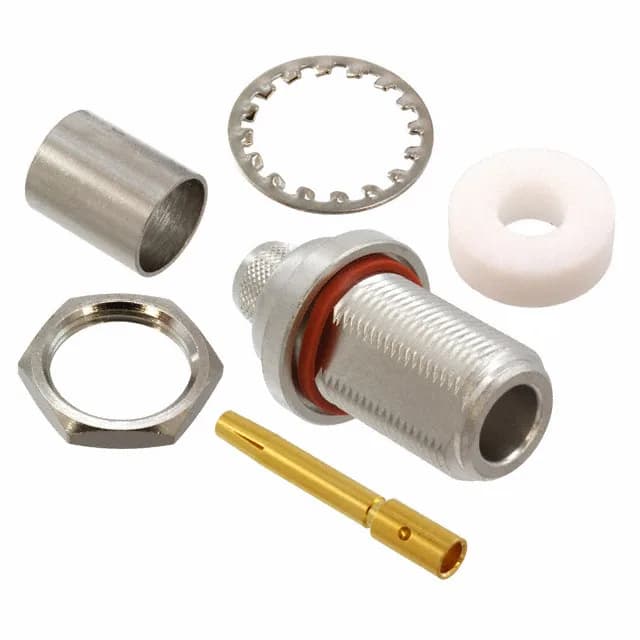

The Molex 0732760161 is an N-Type jack, female socket, part of the Series 73276 line. It is a panel-mount RF connector kit designed specifically for LMR-400 cable, delivering a 50 Ohm impedance path from DC to 11 GHz. The kit includes six pieces: one connector body, one contact, one ferrule, one lockwasher, one nut, and one spacer — everything needed for a single bulkhead termination.

Electrical and mechanical limits

Rated 1000 V and 11 GHz maximum frequency, the connector handles high-voltage RF paths without breaking down the PTFE dielectric. The 500-cycle mating life, with gold-plated beryllium copper centre contact, suits test-equipment or antenna ports that see regular connect-disconnect cycles.

Panel mount via bulkhead with front-side nut — the lockwasher and nut secure the connector to the panel before the cable is attached. The centre contact is solder-terminated; the shield is crimped through the included ferrule. Brass body with nickel finish, silver housing colour. Threaded fastening type ensures vibration-resistant mating.
