N Type Right-Angle Plug for RG-59/62 Coax

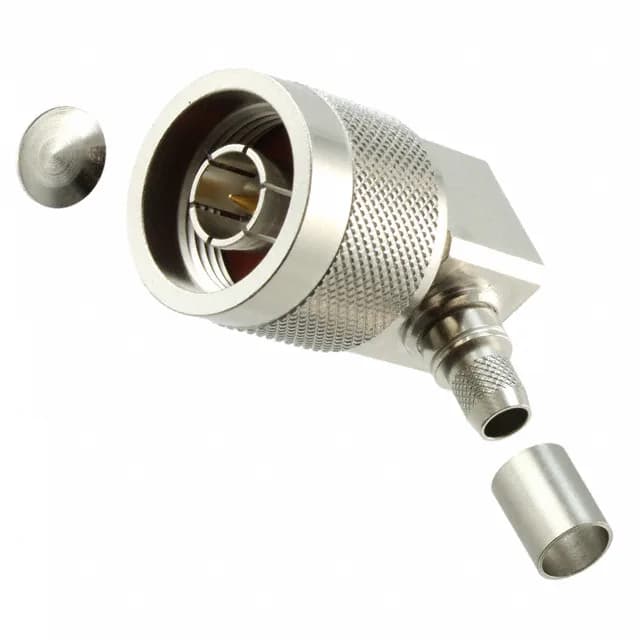

The Molex 0732760210 is an N Type plug, male pin, from the 73276 series — a threaded RF connector designed for field termination on RG-59 and RG-62 coaxial cables. It ships as a three-piece kit: the connector body, an end cap, and a ferrule, so the BOM line covers the full termination hardware in one order code. The 50 Ohm impedance and 11 GHz maximum frequency place this plug squarely in the medium-bandwidth RF interconnect space — suited for base station jumpers, test equipment leads, and antenna feeds where the N Type interface's threaded coupling provides vibration-resistant retention. The right-angle body keeps the cable exit parallel to the panel face, useful when the connector sits against an enclosure wall or in a tight cable tray. Rated for 500 mating cycles with gold-plated centre contact and nickel body finish, the 0732760210 holds up to repeated field connects and disconnects without the contact fretting you'd see on a tin-plated RF connector.
Cable termination is a two-step process: the centre conductor solders into the pin (contact termination is solder), and the shield is crimped using the included ferrule. The kit's end cap threads over the crimp ferrule to seal the cable entry. This is a field-serviceable assembly — no special tooling beyond a solder iron and a standard coax crimp frame for the shield ferrule. The cable group is specified for RG-59 and RG-62. The connector itself is 50 Ohms.
No official cross-reference or replacement part is on record, so the BOM line stays with this order code unless a future EOL notice triggers a search.
