Molex 0734153980 — RF Cable Assemblies

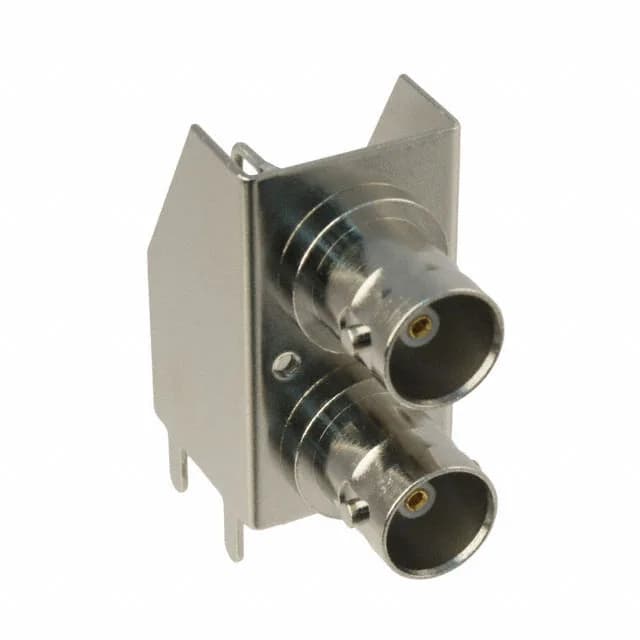

Molex 0734153980 BNC Jack, 75 Ohm, Dual Port, Right Angle

MPN0734153980
Active

Molex Series 73415 BNC jack, 75 Ohm, dual-port, right-angle through-hole, solder termination, gold-plated phosphor bronze center contact, nickel-plated brass body, bayonet lock, 500 mating cycles, tray.

$12.0800Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0734153980 specifications
ParameterValue
Series73415
MountingThrough Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageTray
Impedance75 Ohms
Body finishNickel
Mating cycles500
Number of ports2
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

Dual-Port 75-Ohm BNC Jack for PCB Mount

The Molex 0734153980 is a dual-port BNC jack from the Series 73415 line, designed for 75 Ohm impedance — the standard for video, broadcast, and data-over-coax applications. Each port is a jack, female socket with a bayonet lock for quick, secure mating. The right-angle through-hole body and solder termination fit a standard PCB footprint, with two ports on a single shell saving board space compared to two single jacks.

What the 75-Ohm Impedance and Dual Ports Mean for Your Build

The 75 Ohm impedance targets standard video coax (RG59, RG6) and broadcast-grade signal chains — not 50-Ohm RF test gear. The dual-port configuration is the main differentiator from single-port siblings like the 73171-1641 (same series, single port, also 75 Ohm BNC). If your BOM calls for two coaxial inputs on one footprint, this part eliminates a second connector and the associated board real estate.

Frequently asked questions

Where can I buy Molex 0734153980 and get a price?

The 0734153980 is sourced to order through independent distribution. Submit an RFQ for your target quantity — availability and current pricing are confirmed at quote time. No stock-holding claim is made here.

What is the difference between 0734153980 and 0734153981?

The evidence does not list a 0734153981 variant. The 0734153980 is a dual-port 75-Ohm BNC jack; any difference would be in port count, impedance, or plating — verify against your specific BOM requirement.
