The Molex 0734154161 is an SMP plug, male pin connector from the 73415 series. SMP (SubMiniature Push-on) is a blind-mate RF interface designed for dense board-to-board or cable-to-board interconnects where you need quick, tool-less mating. Rated for surface mount termination, this plug reflows onto the PCB with the rest of the SMT line, saving a hand-solder step. The gold body finish and gold center contact plating, combined with a brass body and center contact, keep signal loss low across repeated matings. The LCP (Liquid Crystal Polymer) dielectric handles the reflow profile without wicking or deformation.

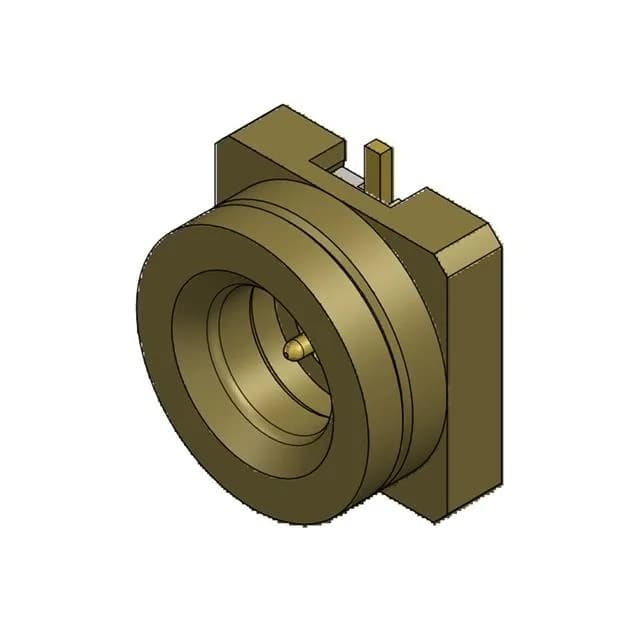

Molex 73415 0734154161 SMP Plug, Male Pin, Snap-On
MPN0734154161
Active
Molex Series 73415 SMP Plug, Male Pin, 1 Port, Snap-On Fastening, Surface Mount, Gold Body Finish, Gold Center Contact Plating, LCP Dielectric, Bag Packaging.
$7.5300Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 73415 |
| Mounting | Surface Mount |
| Connector type | Plug, Male Pin |
| Fastening type | Snap-On |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Liquid Crystal Polymer (LCP) |
| Center contact material | Brass |
| Features | Full Detent |
| Package | Bag |
| Body finish | Gold |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
Product details
Frequently asked questions
Where can I buy the Molex 0734154161 SMP connector?
The 0734154161 is an active-production part sourced through independent distribution. Submit an RFQ for current pricing and lead time; availability is confirmed at quote time.
What is the mating connector for 0734154161?
This SMP plug mates with a standard SMP jack (female) receptacle. The snap-on interface is gender-specific — the plug has the male pin, the jack has the female socket. Confirm the mating half's interface style (smooth-bore or detent) to match the retention force you need.
Is 0734154161 compatible with standard PCB?
Yes, it is designed for surface mount termination onto a standard PCB. The LCP dielectric and gold-plated contacts are reflow-compatible. No special PCB material is required, but the board footprint should follow the manufacturer's recommended land pattern for SMP SMT connectors.
