Guide Assembly for iPass Interconnects

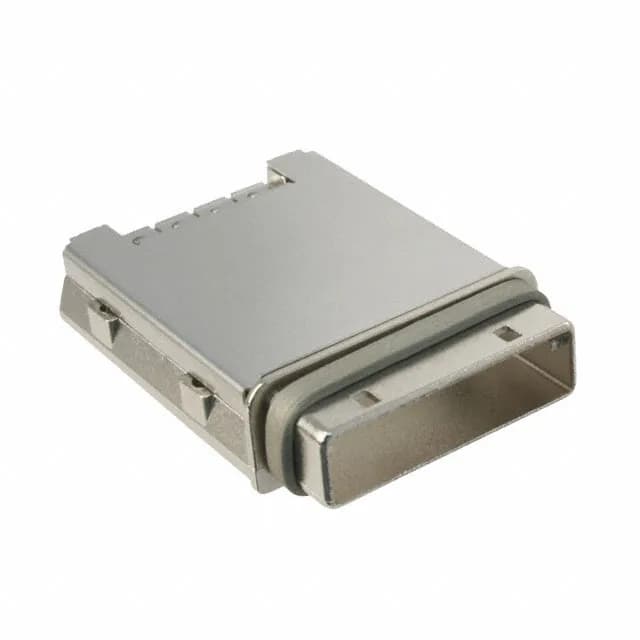

The Molex 0745400401 is a guide assembly from the iPass series, designed to align and protect the mating interface of iPass cable connectors and receptacles. It is not a cable connector itself but a mechanical alignment aid — the metal shell guides the plug into the receptacle without stubbing the contacts, reducing insertion force and preventing contact damage in blind-mate or high-density panel layouts.
Installation Context
This guide assembly mounts to the panel or PCB cutout ahead of the iPass receptacle. The tray packaging indicates it ships loose for manual placement — no tape-and-reel automation. For a clean install, verify the cutout dimensions match the iPass receptacle footprint before soldering the receptacle; the guide assembly then clips or screws into place over the receptacle shell.
