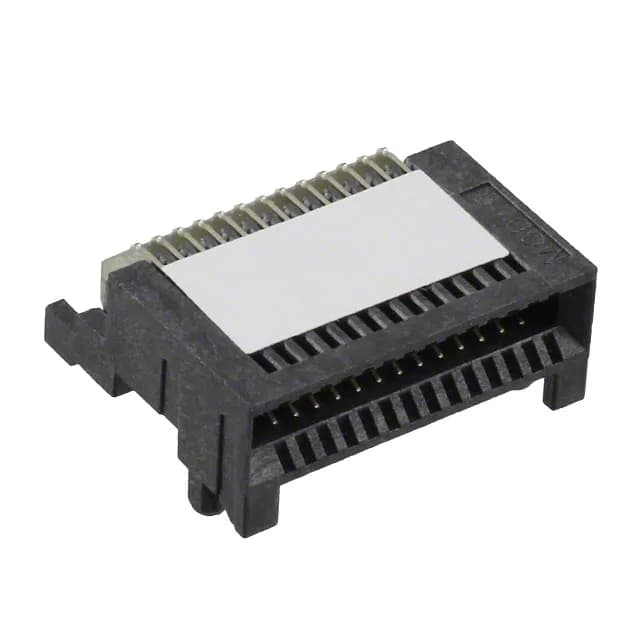

Molex iPass PCI Express 75586 series, SAS mini receptacle, 26 positions, SMT right-angle, gold 30.0µin contacts, Tape & Reel.
| Parameter | Value |
|---|---|
| Series | iPass PCI Express 75586 |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide |
| Termination | Solder |
| Contact finish | Gold |
| Positions | 26 |
| Contact finish thickness | 30.0µin (0.76µm) |
The Molex 0755860009 is a 26-position SAS mini receptacle from the iPass PCI Express 75586 series, designed for internal high-speed data cabling in servers, storage arrays, and backplane applications.
This is a surface-mount, right-angle receptacle — the solder tails land on the same side of the board as the components, and the connector body sits perpendicular to the PCB edge. Tape & Reel packaging suits the pick-and-place line for volume builds.
This is a receptacle from the iPass PCI Express 75586 series; it mates with the corresponding iPass PCI Express plug from the same series. Confirm the plug's position count and keying match the 26-position layout.
This part is sourced to order against your BOM quantity.
