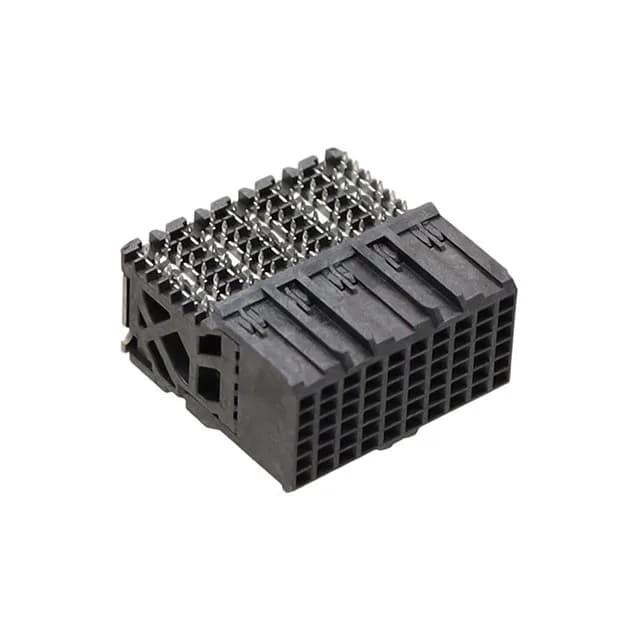

Molex 0764601020 — Specialty Circular

Molex Impact 76460 0764601020

MPN0764601020
Active

Molex Impact 76460 series, receptacle, female sockets, 60 positions, 10 columns, 6 rows, press-fit, right-angle board edge mount, gold 30.0µin contacts, UL94 V-0.

$12.0200Ref. price · indicative, final on quote
Molex 0764601020 datasheet (PDF)
RoHSROHS3 Compliant
SeriesImpact 76460
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

0764601020 specifications
ParameterValue
SeriesImpact 76460
MountingBoard Edge, Through Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating30V
Operating temperature-55°C ~ 85°C
ColorBlack
Material flammability ratingUL94 V-0
PackageTray
TerminationPress-Fit
Contact finishGold
Rows6
Number of columns10
Positions60
Contact layout, typical20 Differential Pairs
Contact finish thickness30.0µin (0.76µm)

Product details

Backplane receptacle for 20 differential-pair lanes

The Molex 0764601020 is a 60-position receptacle from the Impact 76460 series, laid out as 10 columns by 6 rows.

What mates with this receptacle

It mates with the corresponding Impact header (male pin) assembly — typically a right-angle or vertical header with the same 10-column by 6-row footprint. The press-fit tails on both halves let you assemble the backplane and the daughter card without solder.

Sourcing for the BOM line

The base product number 076460 covers the Impact 76460 family; the trailing digits specify the exact column count and plating option.

Frequently asked questions

What is the mating connector for Molex 0764601020?

The 0764601020 is a receptacle that mates with the corresponding Impact 76460 series header (male pin) assembly. Both halves use the same 10-column by 6-row grid and press-fit termination.
