Molex 0780451060 — Wire-to-Board Connectors

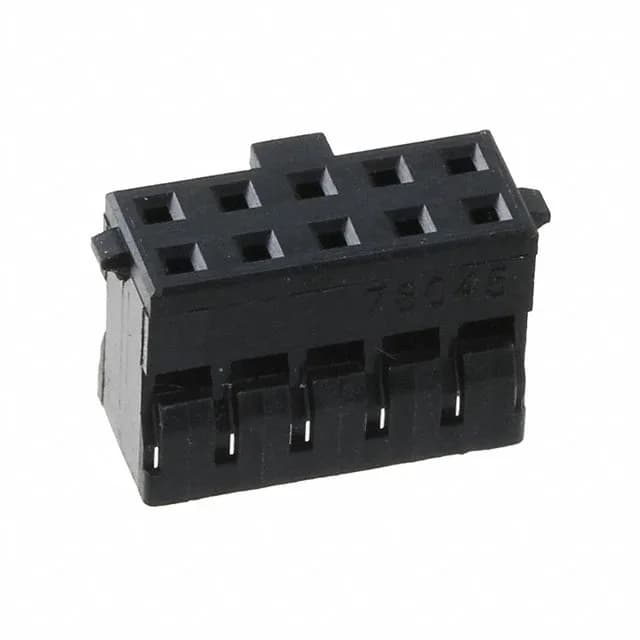

Molex Milli-Grid 0780451060 Receptacle, 10 Pos, 2.00 mm

MPN0780451060
Active

Molex Milli-Grid 79107 series receptacle, 0780451060, 10 positions, 2 rows, 0.079" (2.00mm) pitch, free-hanging crimp, latch lock, black PBT housing, contacts not included.

$0.4400Ref. price · indicative, final on quote
Molex 0780451060 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0780451060 specifications
ParameterValue
SeriesMilli-Grid 79107
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.079\" (2.00mm)
PackageBulk
Row spacing0.079\" (2.00mm)
Rows2
Contact terminationCrimp
Positions10

Product details

The Molex 0780451060 is a 10-position, dual-row receptacle housing from the Milli-Grid 79107 series, on a 0.079" (2.00mm) pitch with matching row spacing.

This is a crimp housing — you supply the female socket contacts (Molex Milli-Grid crimp terminals, not included) and a compatible hand or applicator tool.

What the Contacts Mean for the Build

If you are building a harness, factor in the terminal reel and applicator changeover; if you are prototyping, hand-crimp tools are available. The 10-position count matches a 10-circuit BOM line — confirm the mating header has the same position count and 2.00mm pitch.

Frequently asked questions

Where can I buy molex 0780451060?

Submit an RFQ for your quantity.

What contacts fit molex 0780451060?

This housing accepts Milli-Grid female socket crimp terminals (contacts not included). The exact terminal part number depends on your wire gauge and plating preference — order them separately for the build.

Is 0780451060 a receptacle or plug?

It is a receptacle housing — it accepts female socket contacts and mates with a Milli-Grid pin header.
