Molex 0786463001 — Card-Edge Connectors

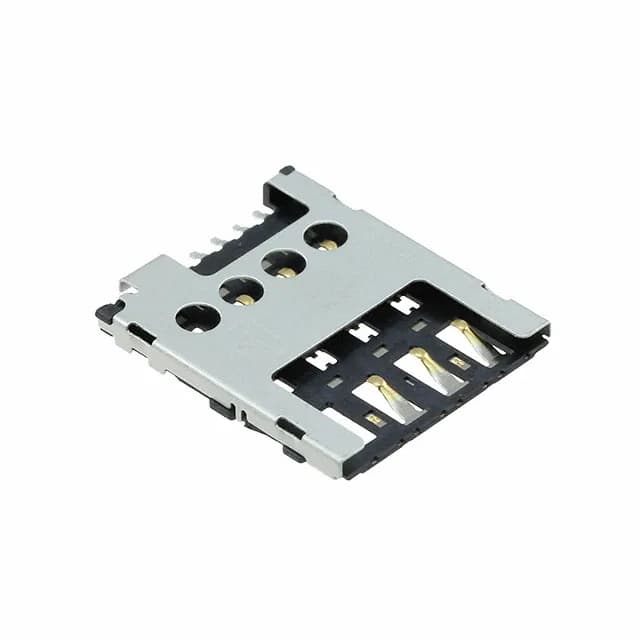

Molex 0786463001 Micro SIM Connector, 6 Pos, SMT Right Angle

MPN0786463001
Active

Molex Series 78646 Micro SIM connector, 0786463001, 6 positions, surface mount right angle, gold contacts (15.0 µ"), 1.45 mm height above board, push-in/pull-out card retention.

$0.8900Ref. price · indicative, final on quote
Molex 0786463001 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0786463001 specifications
ParameterValue
Series78646
Card typeMicro SIM
MountingSurface Mount, Right Angle
Connector typeConnector
Mounting featureNormal, Standard - Top
Height above board0.057\" (1.45mm)
PackageTape & Reel (TR) Cut Tape (CT)
ManufacturerMolex
Contact finishGold
Positions6
Contact finish thickness15.0µin (0.38µm)
Insertion, removal methodPush In, Pull Out

Product details

Micro SIM Card Connector, 6-Position SMT Right Angle

The Molex 0786463001 is a 6-position Micro SIM card connector from the Series 78646, designed for surface mount, right-angle mounting on a PCB. It accepts a standard Micro SIM card with a push-in, pull-out insertion method — no ejector mechanism, so the card is held by contact friction.

What the 1.45 mm Profile and Gold Plating Mean for Your Fit

The 1.45 mm height above board is the key dimension for enclosure clearance — if your assembly has less than about 2 mm of z-space above the PCB, this connector fits without forcing a thicker case. The 15.0 µ" gold on the contacts is enough for the insertion cycles a SIM card sees over a product's life (hundreds, not thousands), and it resists corrosion in humid or dusty environments.

Frequently asked questions

Where can I buy Molex 0786463001?

Molex 0786463001 is available to order through independent distribution. Submit an RFQ for current pricing and lead time — availability is confirmed at quote time.

What are the specifications of 0786463001?

It is a 6-position Micro SIM connector, surface mount right angle, with gold-plated contacts (15.0 µ"), 1.45 mm height above board, and push-in/pull-out card retention. Part of Molex Series 78646.

Is 0786463001 available in tape and reel?

Yes, the 0786463001 is offered in Tape & Reel (TR) and Cut Tape (CT) packaging.

Can 0786463001 be used as a replacement for 0786463002?

The 0786463001 and 0786463002 are both 6-position Micro SIM connectors in the same series, but the evidence does not confirm pin-to-pin compatibility. Verify the footprint and card retention method against your board layout before substituting.

What is the contact finish thickness on 0786463001?

The contacts have a gold finish with a thickness of 15.0 µ" (0.38 µm).

What is the height of Molex 0786463001?

The height above board is 0.057" (1.45 mm).
