Molex 0787231001

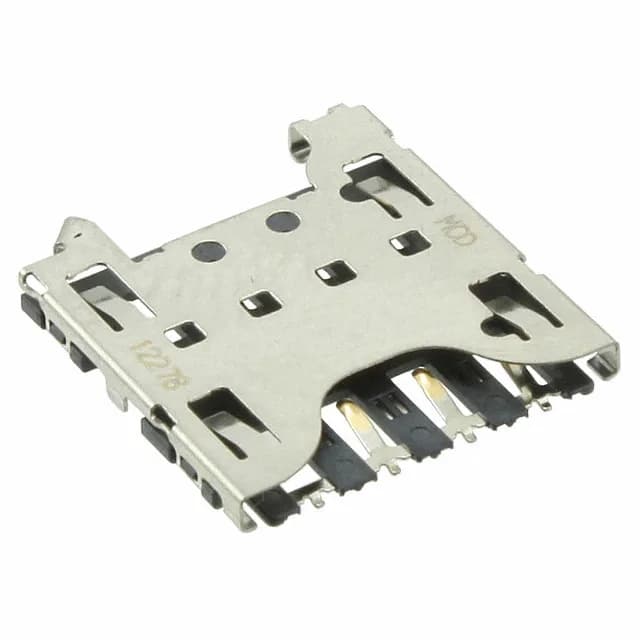

Molex 0787231001 Micro SIM Connector, 6 Pos, 1.35mm Height

MPN 0787231001
Active

Molex 78723 Series Micro SIM Connector, 0787231001, 6 Positions, Surface Mount, Right Angle, Gold 15.0µin Contact Finish, 1.35mm Height Above Board, Push In/Pull Out.

$1.8300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0787231001 specifications
ParameterValue
Series78723
Card typeMicro SIM
MountingSurface Mount, Right Angle
Connector typeConnector
Mounting featureNormal, Standard - Top
Height above board0.053\" (1.35mm)
PackageTape & Reel (TR) Cut Tape (CT)
ManufacturerMolex
Contact finishGold
Positions6
Contact finish thickness15.0µin (0.38µm)
Insertion, removal methodPush In, Pull Out

Product details

Micro SIM Card Connector for Board-Level Integration

The Molex 0787231001 is a 6-position Micro SIM connector from the 78723 series, designed for surface-mount, right-angle attachment to a PCB. It accepts a Micro SIM card via a push-in, pull-out method — no ejector mechanism — and sits 1.35 mm above the board surface. The contacts are finished in gold at 15.0 µin, a plating grade suited to the repeated insertion cycles a SIM connector sees in mobile devices, IoT modules, and field-service equipment.

Board Footprint and Clearance

The surface-mount termination suits automated pick-and-place assembly and reflow soldering, common in mid-to-high-volume production runs.

Contact and Retention Design

The push-in, pull-out card retention relies on contact beam friction rather than a mechanical latch or ejector — a simpler, lower-profile design that reduces part count but means the card is held by the contacts alone.
