SAS Plug for Internal Storage Backplanes

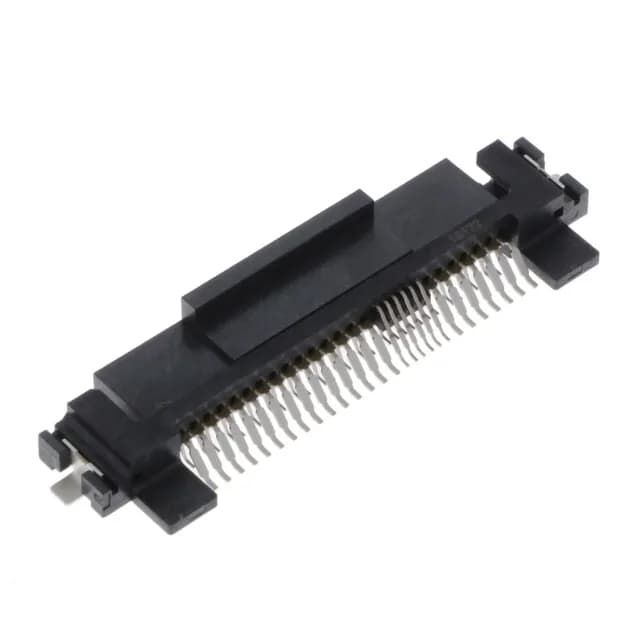

The Molex 0787580002 is a 68-position SAS plug from the 78758 series, designed for internal high-speed storage backplane interconnects.
Board Layout and Assembly Fit
The right-angle SMT footprint keeps the connector body flush with the board edge, saving Z-height in a drive cage assembly. A pick-and-place cap (noted in the features) allows vacuum-pick automated placement on the SMT line, which is standard for high-volume backplane assembly. The Tape & Reel packaging (Cut Tape also available) feeds directly into the pick-and-place feeder.
