Molex 0855105118 — Modular / RJ Connectors

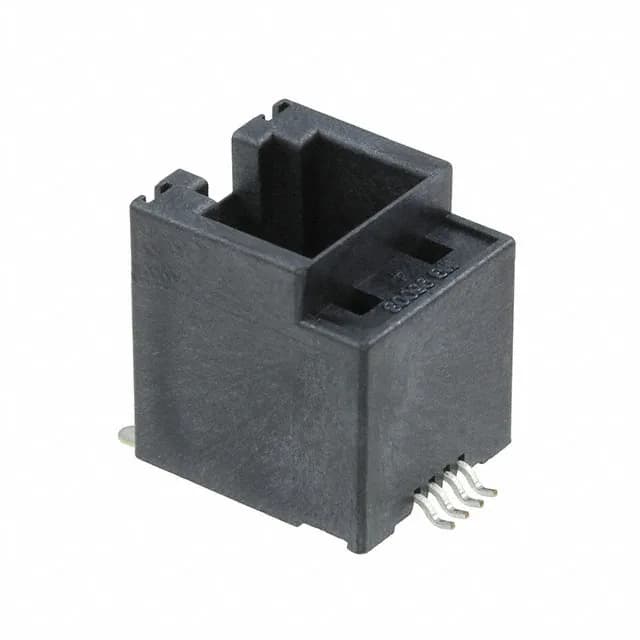

Molex 85510 0855105118 Jack, 6p4c, Cat3, Unshielded

MPN0855105118
Active

Molex 85510 series modular jack, 0855105118, 6p4c (RJ11, RJ14), vertical SMT, unshielded, gold flash contacts, Cat3 rated, Tape & Reel.

$1.6600Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0855105118 key specifications
ParameterValue
Series85510
MountingSurface Mount
Connector typeJack
Operating temperature-40°C ~ 85°C
LED colorDoes Not Contain LED
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP), Glass Filled
RatingsCat3
FeaturesPick and Place Cap, Solder Retention
PackageTape & Reel (TR) Cut Tape (CT)
ShieldingUnshielded
OrientationVertical

All specifications

0855105118 additional specifications
ParameterValue
TerminationSolder
ManufacturerMolex
Tab directionUser Selectable
Contact finishGold
Rows1
Number of ports1
Contact finish thicknessFlash
Number of positions (Contacts)6p4c (RJ11, RJ14)

Product details

6p4c RJ11/RJ14 Jack, Cat3, Vertical SMT

The Molex 0855105118 is a 6p4c (RJ11, RJ14) modular jack from the 85510 series, designed for surface-mount termination in a vertical orientation. It carries a Cat3 rating, meaning it's built for voice and low-speed data up to roughly 16 MHz — a common fit for basic telephone lines, fax machines, or legacy PBX equipment. The unshielded construction keeps the cost down and the footprint small, but it won't handle the crosstalk rejection needed for Cat5e or faster Ethernet.

A Cat3 jack like this one is rated for frequencies up to about 16 MHz, while a Cat5e jack pushes past 100 MHz. If you're pulling a new network run for Gigabit Ethernet, this isn't the part — you'd need a shielded or unshielded Cat5e/6 jack. But for a straight replacement on an existing Cat3 voice line, the 0855105118 is a direct pitch and pinout match for any standard 6p4c plug. No re-termination needed, no adapter.

Frequently asked questions

Is 0855105118 shielded?

No. The 0855105118 is unshielded — no EMI protection. For environments with electrical noise or where shielded cabling is specified, you'd need a shielded modular jack from a different series.
