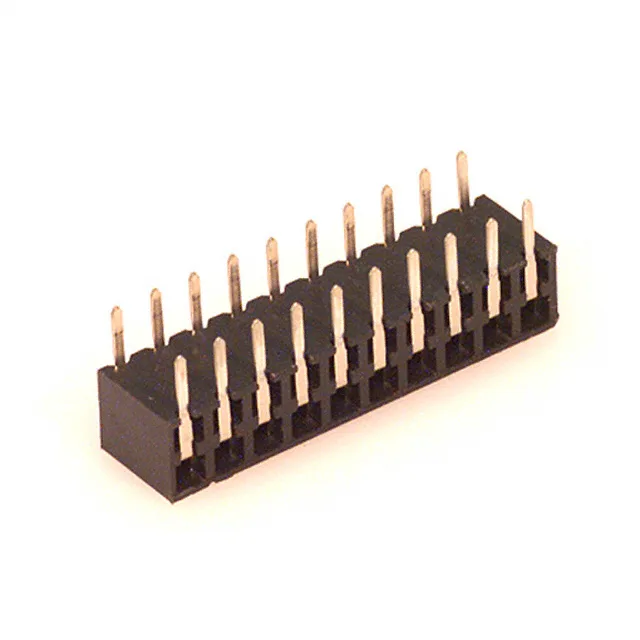

Molex 0872642052 Milli-Grid 20-Pin Receptacle, 2.00mm Pitch

MPN0872642052
Active

Molex Milli-Grid 87264 series, 0872642052, 20-position dual-row female socket receptacle, 2.00 mm pitch, through-hole right-angle, gold-plated contacts, 1 A, 125 VAC, -55°C to 105°C, black insulation, tube package.

$3.7100Ref. price · indicative, final on quote
0872642052 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0872642052 Technical Specifications
ParameterValue
SeriesMilli-Grid 87264
GenderFemale Socket
Mounting typeThrough Hole, Right Angle
Connector typeReceptacle
Fastening typePush-Pull
Voltage rating125VAC
Current rating1A
Operating temperature-55°C ~ 105°C
Insulation colorBlack
Insulation height0.157\" (4.00mm)
StyleBoard to Board or Cable
PackageTube
TerminationSolder
ApplicationsAutomotive, General Purpose, Telecommunications
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions20
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.100\" (2.54mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

20-Position, 2.00 mm Pitch — Right-Angle Board Fit

The 0872642052: This is a 20-position dual-row female socket receptacle from the Molex Milli-Grid 87264 series, pitched at 2.00 mm between contacts.

Mating Half and Board Layout

The PCB footprint requires a dual-row pattern with 2.00 mm pitch in both x and y axes.

It is ROHS3 compliant. Packaged in tubes (standard for through-hole receptacles). No official second-source cross-reference exists; the Milli-Grid series is Molex-proprietary in footprint and keying.

Frequently asked questions

What is the correct mating connector for Molex 0872642052?

The mating connector is a Milli-Grid 87264 series male pin header, also 20-position, dual-row, 2.00 mm pitch. Look for headers with the same circuit count and pitch; the push-pull interface means no latch, so the header must be board-locked if vibration is present.
