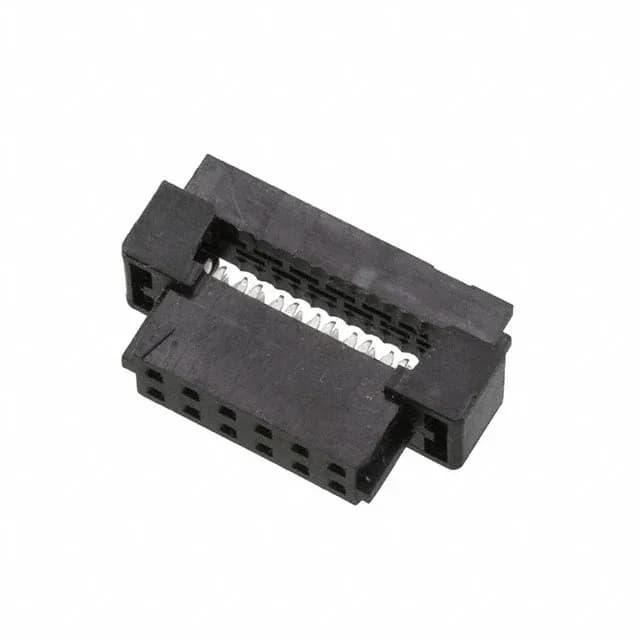

Milli-Grid IDC Receptacle, 12-Position, 2.00mm Pitch
The Molex 0875681263 is a 12-position receptacle from the Milli-Grid 87568 series, designed for mass-termination IDC connection to 28 AWG ribbon cable. The dual-row layout at 0.079" (2.00mm) pitch matches standard ribbon cable spacing, making this a drop-in interconnect for internal signal harnesses in computing, peripheral, and industrial control equipment.
The 28 AWG wire gauge is the standard for 0.079" pitch ribbon cable; using a different gauge risks poor contact or insulation damage. The free-hanging (in-line) mounting allows the receptacle to float in the harness, reducing strain on the board-mounted header.
Mating and Series Compatibility
This receptacle mates with Milli-Grid 87568 series pin headers of the same 2.00mm pitch and 12-position count. The dual-row, 2-row configuration aligns with standard Milli-Grid headers. The feed-through feature in the receptacle body allows daisy-chaining ribbon cable segments — useful for bus-style signal distribution within an enclosure.
