Molex 0875681463 — Panel-Mount & In-Line Circular

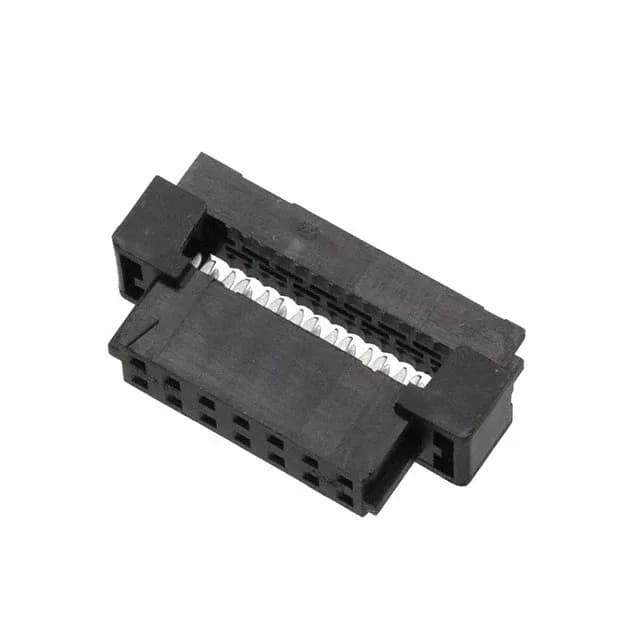

Molex 0875681463 Milli-Grid Receptacle, 14 Pos IDC 28 AWG

MPN0875681463
Active

Molex Milli-Grid 87568 series, receptacle, 14 positions, 2.00 mm pitch, 2 rows, IDC termination, 28 AWG ribbon cable, gold contact finish 15.0 µin, free hanging, black, tray.

$3.3100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMilli-Grid 87568
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

0875681463 specifications
ParameterValue
SeriesMilli-Grid 87568
Wire typeRibbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge28 AWG
Cable terminationIDC
ColorBlack
Pitch0.079\" (2.00mm)
PackageTray
FeaturesFeed Through
Row spacing0.079\" (2.00mm)
Contact finishGold
Rows2
Positions14
Contact finish thickness15.0µin (0.38µm)

Product details

The Molex 0875681463 is a 14-position receptacle from the Milli-Grid 87568 series, designed for mass-termination of 28 AWG ribbon cable via IDC contacts.

Termination and Cable Fit

IDC termination eliminates individual wire stripping and crimping — the 28 AWG ribbon cable is pressed onto the insulation-displacement slots in one operation. The free-hanging (in-line) mounting style means this receptacle is the cable-end half, mating with a board-mounted Milli-Grid header. The feed-through feature allows daisy-chaining multiple receptacles along the same ribbon cable, common for parallel signal distribution in printer or scanner head assemblies.

Frequently asked questions

Where can I buy Molex 0875681463?

Submit a request for quote (RFQ) to confirm availability and current pricing at your volume.

What is the pitch and number of positions of 0875681463?

The pitch is 2.00 mm and the connector has 14 positions arranged in 2 rows.

What gauge wire is compatible with 0875681463?

This IDC receptacle is specified for 28 AWG ribbon cable only.
