20-Pin IDC Receptacle for 28 AWG Ribbon Cable

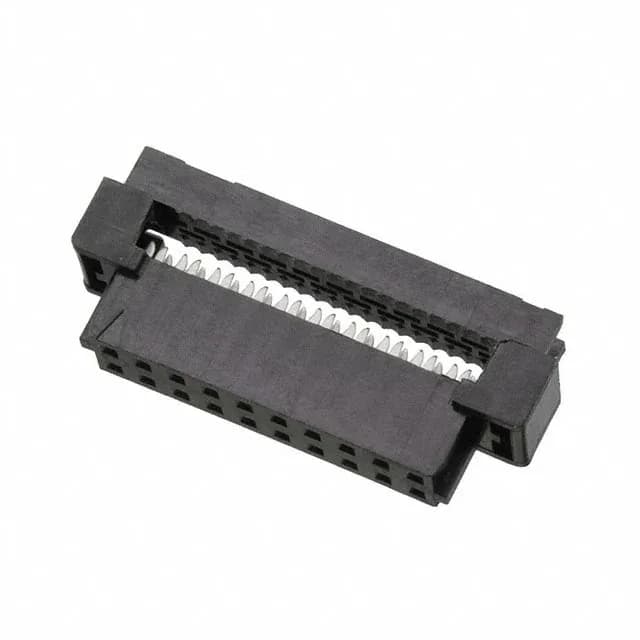

The Molex 0875682063 is a 20-position IDC receptacle from the Milli-Grid 87568 series, designed for mass-termination to 28 AWG ribbon cable. It uses a dual-row layout with 0.079" (2.00mm) pitch and matching 0.079" (2.00mm) row spacing — the same grid dimension on both axes, which keeps the cable transition clean without staggering the conductors. The housing is black, free-hanging (in-line), and includes a feed-through feature that lets the ribbon cable pass straight through the connector body — useful when you need to daisy-chain the cable to another receptacle further down the harness.
IDC Termination — What 28 AWG Means for the Build
The 0875682063 is specified for 28 AWG ribbon cable only. The IDC slot dimensions and insulation displacement blades are tuned to that wire gauge — forcing a heavier gauge risks incomplete pierce and intermittent contact; a lighter gauge leaves the conductor loose in the slot. Termination is a one-step press operation: align the ribbon so each conductor sits over its slot, then press the cover down with a hand press or arbor press. No stripping, no crimping.
