Molex 0875683063

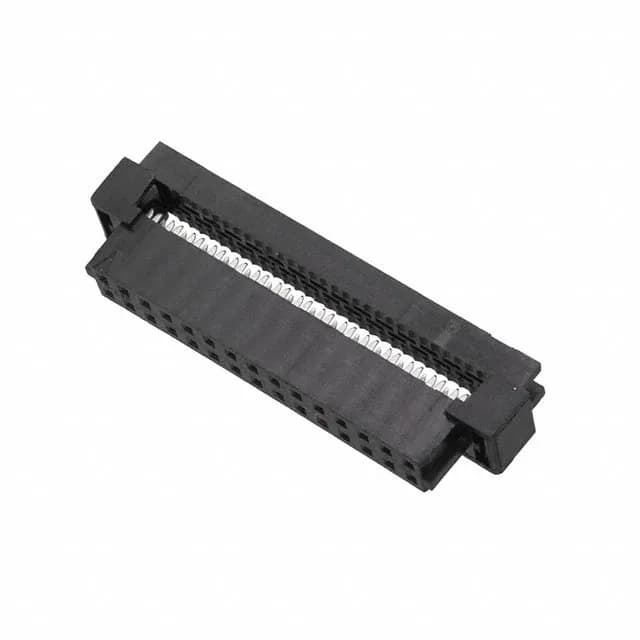

Molex 0875683063 Milli-Grid 87568 Receptacle, 30 Pos

MPN 0875683063
Active

Molex Milli-Grid 87568, Receptacle, 0875683063, 30 circuits, 0.079" (2.00mm) pitch, 2 rows, IDC termination, 28 AWG ribbon cable, Gold contacts, Free Hanging.

$5.5600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMilli-Grid 87568
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

0875683063 specifications
ParameterValue
SeriesMilli-Grid 87568
Wire typeRibbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge28 AWG
Cable terminationIDC
ColorBlack
Pitch0.079\" (2.00mm)
PackageTray
FeaturesFeed Through
Row spacing0.079\" (2.00mm)
Contact finishGold
Rows2
Positions30
Contact finish thickness15.0µin (0.38µm)

Product details

The Molex 0875683063 is a 30-position receptacle from the Milli-Grid 87568 series, designed for mass-termination of 28 AWG ribbon cable via insulation-displacement contacts (IDC). Free-hanging (in-line) mounting means no board lock or panel hardware; the connector floats in the harness, which is typical for internal ribbon cable runs in computing, peripheral, and industrial control enclosures.

Fit and termination — what to match

The 30-position count and 0.079" (2.00mm) pitch are the non-negotiable fit parameters. The mating half is a Milli-Grid 87568 series pin header with the same pitch, row count, and position count — any header in that family with matching dimensions will mate. IDC termination requires the correct 28 AWG ribbon cable; the feed-through feature on the receptacle lets the cable pass through the housing, which is useful for daisy-chain or pass-through harness layouts. The 2-row spacing is also 0.079" (2.00mm), so the overall footprint is a 30-position grid that aligns with standard 0.079" pitch ribbon cable. Compared to a 26-position sibling like 0875683062, the difference is purely the circuit count — same pitch, same termination style, same gold plating — so the selection decision comes down to the number of signals in the harness.
