Molex 0875684063 — Panel-Mount & In-Line Circular

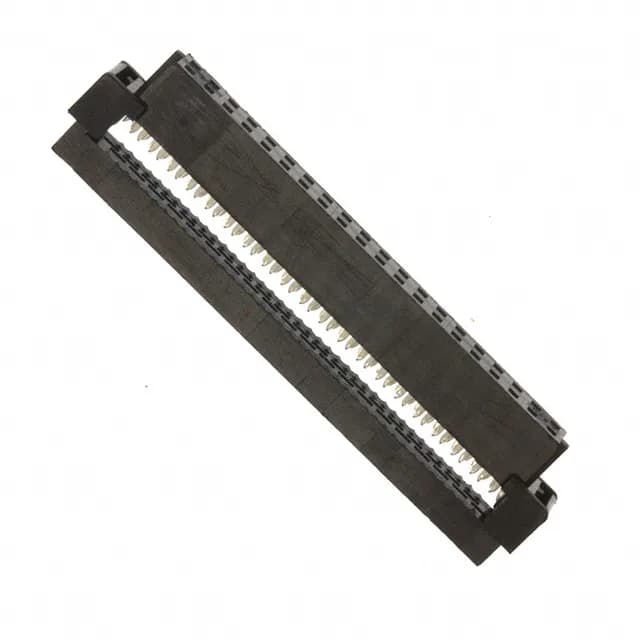

Molex 0875684063 Milli-Grid Receptacle, 40 Pos, 2.00mm IDC

MPN0875684063
Active

Molex Milli-Grid 87568 series receptacle, 0875684063, 40 positions, 2 rows, 2.00mm pitch, IDC termination for 28 AWG ribbon cable, female socket contacts, gold plating 15.0µin, free-hanging, black, tray.

$5.8600Ref. price · indicative, final on quote
Molex 0875684063 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMilli-Grid 87568
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

0875684063 specifications
ParameterValue
SeriesMilli-Grid 87568
Wire typeRibbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge28 AWG
Cable terminationIDC
ColorBlack
Pitch0.079\" (2.00mm)
PackageTray
FeaturesFeed Through
Row spacing0.079\" (2.00mm)
Contact finishGold
Rows2
Positions40
Contact finish thickness15.0µin (0.38µm)

Product details

40-Position IDC Receptacle for 2.00 mm Ribbon Cable

The Molex 0875684063 is a 40-position receptacle in the Milli-Grid 87568 series, designed for mass-termination to 28 AWG ribbon cable via an IDC (Insulation Displacement Contact) interface. The 2.00 mm pitch on both rows and the 2.00 mm row spacing match standard 0.079-inch ribbon cable layouts, so the cable simply presses into the connector body — no stripping, no crimping.

The IDC termination is sized for 28 AWG ribbon cable — the connector body has a feed-through slot so the cable can pass straight through the back, which is common in daisy-chain or pass-through harnesses where one cable serves multiple connectors. For a harness build, the tooling requirement is a simple IDC press — no solder, no crimp dies.

The black housing is keyed by the polarization ribs in the header shroud, so a reversed mate is physically blocked.

Frequently asked questions

Where can I buy 0875684063 available via RFQ confirmation?

The Molex 0875684063 is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for the quantity you need.

What is the mating connector for 0875684063?

This receptacle mates with a 40-position, dual-row, 2.00 mm pitch pin header from the same Milli-Grid 87568 series. The gold-plated contact interface is shared between both halves.

What is the pitch of 0875684063?

The pitch is 2.00 mm (0.079 inches) on both the row spacing and the contact-to-contact spacing within each row.
