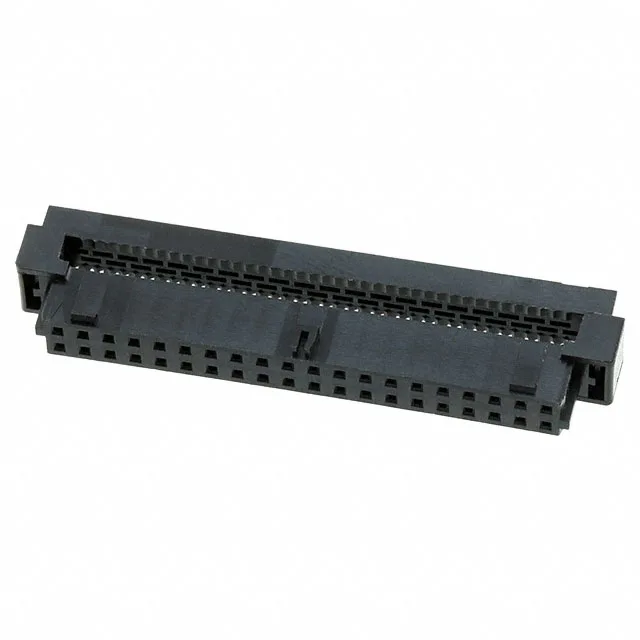

0875684093 — Molex product photo
Molex

Molex Milli-Grid 0875684093, 40-Position IDC Receptacle

MPN0875684093
Active

Molex Milli-Grid 87568 series receptacle, 0875684093, 40 positions, 2 rows, 0.079" (2.00mm) pitch, IDC termination for 28 AWG ribbon cable, gold contact finish, free-hanging, locking ramp, black, tray.

$4.9200Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

0875684093 Technical Specifications
ParameterValue
SeriesMilli-Grid 87568
Wire typeRibbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge28 AWG
Cable terminationIDC
ColorBlack
Pitch0.079\" (2.00mm)
FeaturesFeed Through, Polarizing Key
PackageTray
Row spacing0.079\" (2.00mm)
ManufacturerMolex
Contact finishGold
Rows2
Positions40
Contact finish thickness15.0µin (0.38µm)

Product details

40-Position IDC Receptacle for 2.00 mm Ribbon Cable

The Molex 0875684093 is a 40-circuit receptacle in the Milli-Grid 87568 series, designed for mass-termination to 28 AWG ribbon cable via IDC contacts. It carries 40 positions across two rows on a 0.079" (2.00 mm) pitch, with an identical 0.079" (2.00 mm) row spacing.

The IDC termination presses through the ribbon cable insulation in one operation — no wire stripping, no individual crimp. The feed-through feature and polarizing key prevent misalignment during assembly.

Frequently asked questions

Where can I buy Molex 0875684093 and how is it quoted?

The 0875684093 is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding claim is made on this listing.

How many circuits does Molex 0875684093 have?

The 0875684093 has 40 positions arranged in two rows of 20 on a 0.079" (2.00 mm) pitch.

Is 0875684093 compatible with 28 AWG ribbon cable?

Yes — the IDC termination is specified for 28 AWG ribbon cable, and the 2.00 mm pitch matches standard 28 AWG rainbow ribbon.

What is the mating connector for 0875684093?

It mates with a Milli-Grid 87568 series shrouded header (same 2.00 mm pitch, dual-row) soldered to a PCB. The locking ramp on the receptacle engages the header latch.
