Molex 0875684463 — Panel-Mount & In-Line Circular

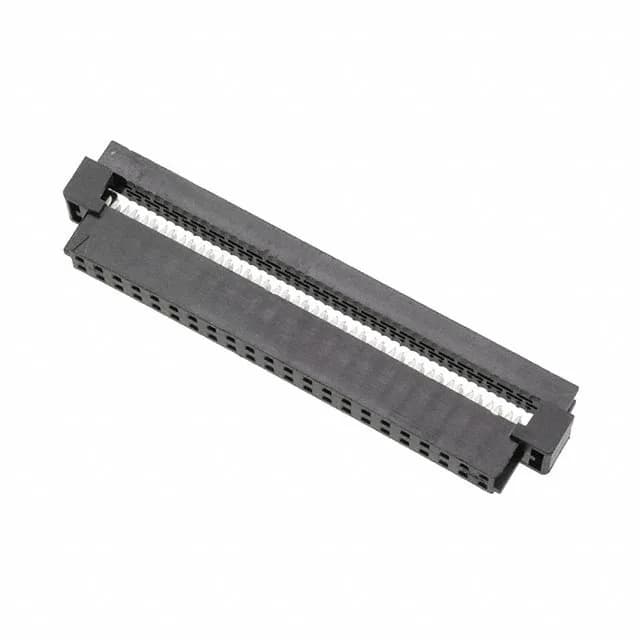

Molex Milli-Grid 87568 0875684463, 44-Pos IDC Receptacle

MPN0875684463
Active

Molex Milli-Grid 87568 series, receptacle, 44 positions, 2 rows, 0.079" (2.00mm) pitch, IDC termination, 28 AWG, gold contacts, free hanging, black, tray.

$5.8100Ref. price · indicative, final on quote
Molex 0875684463 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMilli-Grid 87568
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

0875684463 specifications
ParameterValue
SeriesMilli-Grid 87568
Wire typeRibbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge28 AWG
Cable terminationIDC
ColorBlack
Pitch0.079\" (2.00mm)
PackageTray
FeaturesFeed Through
Row spacing0.079\" (2.00mm)
Contact finishGold
Rows2
Positions44
Contact finish thickness15.0µin (0.38µm)

Product details

The Molex 0875684463 is a 44-position receptacle in the Milli-Grid 87568 series, designed for mass-termination of 28 AWG ribbon cable via an IDC (insulation displacement contact) interface.

Termination and Wire Handling

The IDC termination accepts 28 AWG ribbon cable — the insulation is displaced by the contact tines as the cover is pressed down, making gas-tight connections without stripping or soldering. The feed-through feature allows the ribbon cable to pass through the housing, simplifying daisy-chain or pass-through wiring in a harness.

The BOM line should specify the 44-position receptacle; the matching header is a separate order code in the same Milli-Grid 87568 series.

Frequently asked questions

What is the mating header for 0875684463?

The 0875684463 mates with a Milli-Grid 87568 series board-mount header of the same 44-position count and 0.079" (2.00mm) pitch. The header is a separate order code in the same series.

Where can I buy 0875684463?

This part is sourced to order against your BOM quantity. Availability and pricing are confirmed at quote time.
