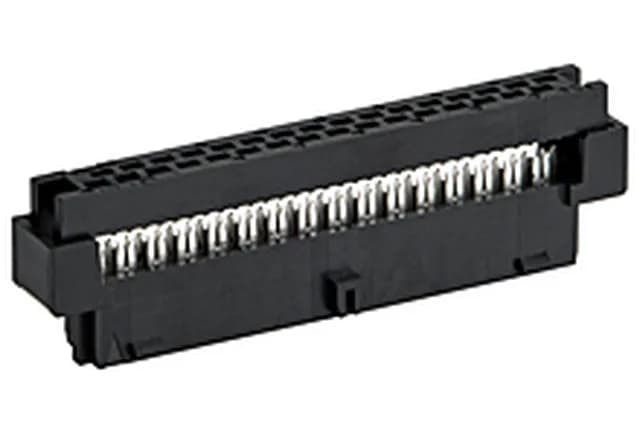

Molex Milli-Grid 87568 series, 44-position IDC receptacle, 2.00mm pitch, dual-row, gold-plated female sockets, free-hanging, locking ramp, 28 AWG ribbon cable termination.
| Parameter | Value |
|---|---|
| Series | Milli-Grid 87568 |
| Wire type | Ribbon Cable |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Wire gauge | 28 AWG |
| Cable termination | IDC |
| Color | Black |
| Pitch | 0.079\" (2.00mm) |
| Package | Tray |
| Features | Feed Through, Polarizing Key |
| Row spacing | 0.079\" (2.00mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 44 |
| Contact finish thickness | 30.0µin (0.76µm) |
The Molex 0875684494 is a 44-circuit IDC receptacle from the Milli-Grid 87568 series, designed for mass-termination to 28 AWG ribbon cable. It uses a dual-row layout on a 0.079" (2.00mm) pitch with matching 0.079" (2.00mm) row spacing, giving a compact footprint for high-density signal harnesses. The free-hanging (in-line) mount and feed-through feature allow daisy-chaining along the cable run.
The Molex 0875684494 uses a 0.079" (2.00mm) pitch with matching 0.079" (2.00mm) row spacing.
The 0875684494 is designed for mass-termination to 28 AWG ribbon cable via IDC termination.
