Molex 87715 series PCI Express female edge card connector, 36 positions, 0.039" (1.00mm) pitch, dual row, through-hole solder, gold 15.0µin plating, black housing, locking ramp.
| Parameter | Value |
|---|---|
| Series | 87715 |
| Card type | PCI Express™ |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 85°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Material - insulation | Polyamide (PA46), Nylon 4/6 |
| Pitch | 0.039\" (1.00mm) |
| Gender | Female |
| Package | Tray |
| Features | Board Guide, Locking Ramp |
| Read out | Dual |
| Termination | Solder |
| Card thickness | 0.062\" (1.57mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 36 |
| Contact finish thickness | 15.0µin (0.38µm) |

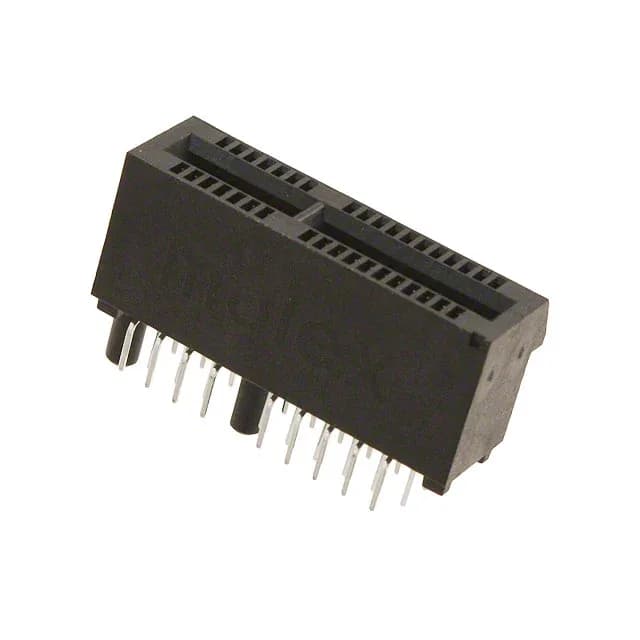

The Molex 0877159005 is a 36-position female edge card connector from the 87715 series, purpose-built for the PCI Express™ interface.
The 0.062" (1.57mm) card thickness is the standard for PCI Express add-in cards, so no special board stack-up is needed.
The 0877159005 is the female edge card connector that mates directly with the gold fingers on a standard PCI Express add-in card. It does not use a separate mating housing — the card edge inserts into the slot.
