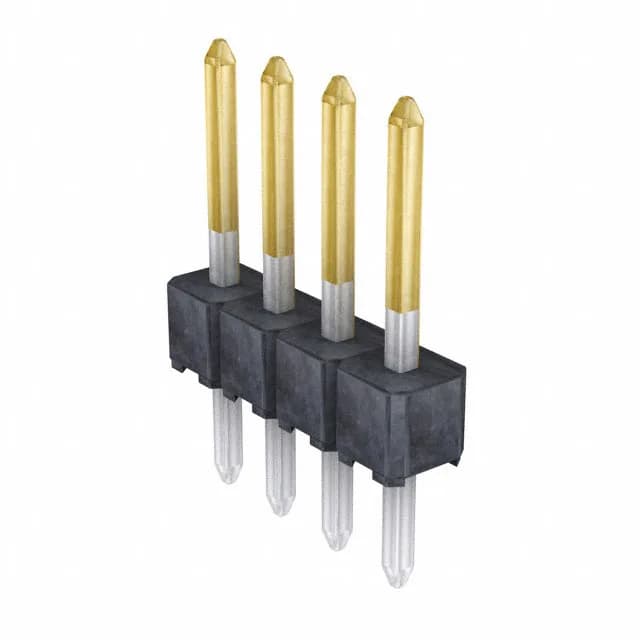

Molex C-Grid III 90120 series, 0901200764, unshrouded breakaway header, 4 circuits, 2.54mm pitch, through-hole solder termination, gold-plated mating pins, black UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | C-Grid III 90120 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.098\" (2.50mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Parameter | Value |
|---|---|
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Overall contact length | 0.478\" (12.15mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 2.54mm pitch matches the standard 0.100-inch grid, and the gold-plated mating pins (15.0µin) handle repeated connect-disconnect cycles without fretting corrosion. The through-hole solder tails are tin-plated (118.1µin) for reliable wave-solder wetting.
Unshrouded push-pull interface — mates with any C-Grid III receptacle housing that accepts 2.54mm pitch male pins. No secondary lock; the retention depends on the receptacle's terminal grip. Termination is solder-only, through-hole.
We source this part to order through our independent distribution network. Submit an RFQ with your target quantity and we will confirm availability and current pricing.
Any C-Grid III receptacle housing designed for 2.54mm pitch, 4-circuit, unshrouded male pins will mate. The push-pull interface means no locking latch — the fit relies on the receptacle's terminal retention.
