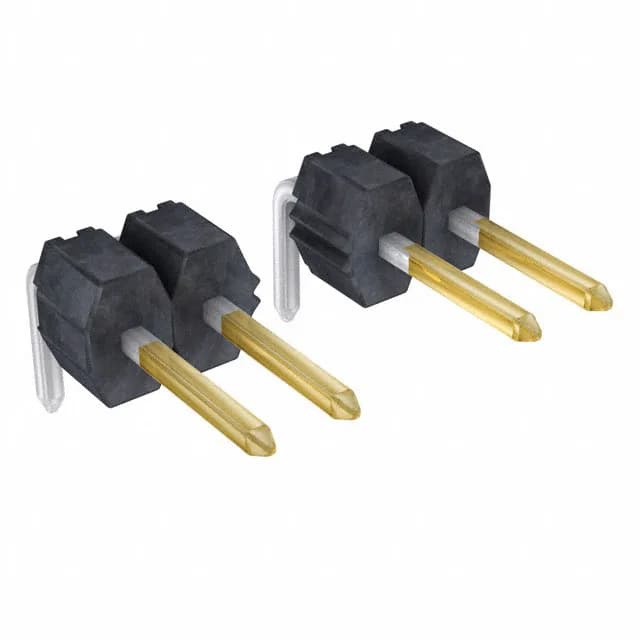

Molex C-Grid III 90121 series unshrouded breakaway header, 9 circuits, 0.100" (2.54 mm) pitch, right-angle through-hole, gold-plated mating contacts, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | C-Grid III 90121 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.142\" (3.60mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The black insulation provides visual contrast for inspection.
Listed as 'Board to Board or Cable', this unshrouded header mates with C-Grid III crimp housings (e.g., 90119 series) for wire-to-board applications, or with another header for board-to-board stacking. The square male pins are brass with a 0.266" (6.75 mm) mating length and 0.114" (2.90 mm) post length.
The pitch is 0.100" (2.54 mm), standard for C-Grid III headers.
Yes, the style is 'Board to Board or Cable', and it mates with C-Grid III crimp housings (e.g., 90119 series) for wire-to-board applications.
Yes, it is ROHS3 compliant.
