Molex 0901420044 — Connector Housings

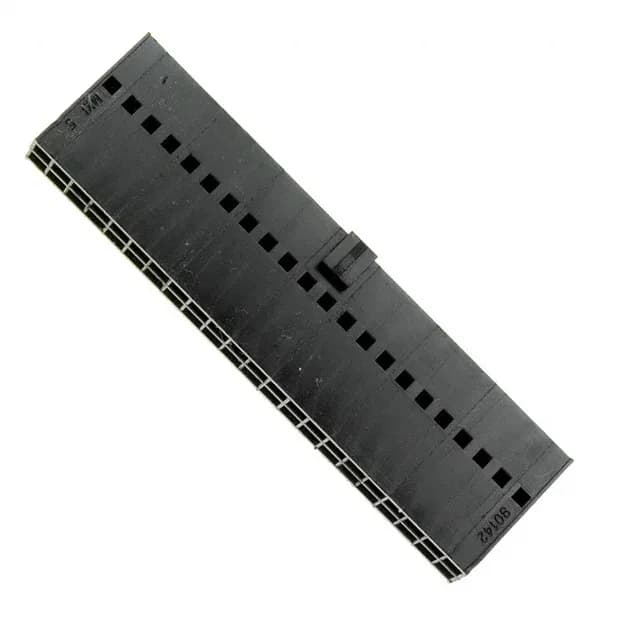

Molex C-Grid III 90142 0901420044, 44-Pos Receptacle Housing

MPN0901420044
Active

Molex C-Grid III 90142, Receptacle Housing, 44 Positions, 2 Row, 0.100" (2.54mm) Pitch, Crimp Termination, Free Hanging, Locking Ramp, Black, ROHS3, Contacts Not Included.

$2.5100Ref. price · indicative, final on quote
Molex 0901420044 datasheet (PDF)
RoHSROHS3 Compliant
SeriesC-Grid III 90142
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0901420044 specifications
ParameterValue
SeriesC-Grid III 90142
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialPolyphenylene Oxide (PPO)
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Row spacing0.100\" (2.54mm)
Rows2
Contact terminationCrimp
Positions44

Product details

What It Does Not Include — The Contacts

The housing's internal geometry retains the terminal with a secondary lock, but if you load the wrong terminal family the retention ramp won't engage. Stick to the C-Grid III crimp terminals specified for the 90142 series.

Material and Environment Range

PPO holds up well in industrial cabinet environments where the connector sees moderate heat cycling but not direct solvent exposure. The ROHS3 compliance covers the full EU exemption list — no lead, no phthalates in the plastic.

Frequently asked questions

Does Molex 0901420044 come with contacts?

No — contacts are not included with this housing. You need to order the female crimp socket terminals separately, typically the Molex 90119 series or the equivalent C-Grid III crimp terminal.

What is the pitch and row spacing of 0901420044?

Both the pitch and row spacing are 0.100" (2.54mm), making it compatible with standard 0.100" headers and board layouts.
