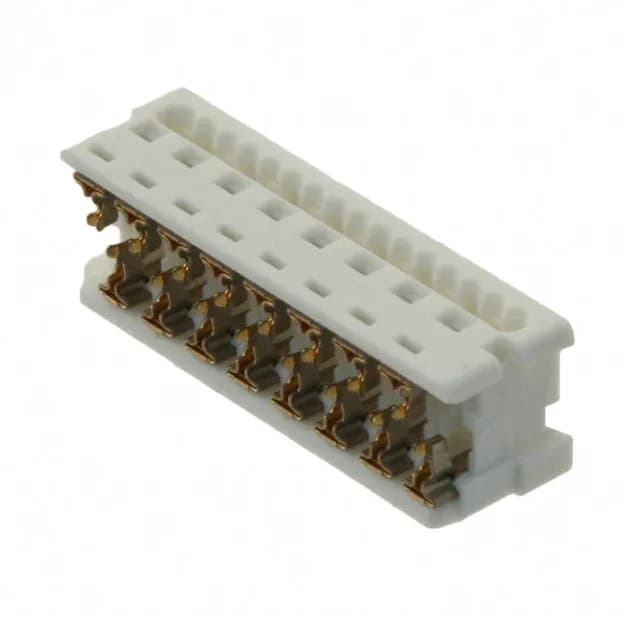

The Molex 0903273316 is a 16-position, dual-row receptacle from the Picoflex PF-50 90327 series, designed for mass-termination of 26-28 AWG ribbon cable via IDC contacts. The free-hanging (in-line) mounting allows it to be used as a cable-end connector, mating with the corresponding Picoflex PF-50 header.
Termination and Contact Design
IDC termination eliminates wire stripping and soldering, relying on the insulation-displacement slot to pierce the ribbon cable jacket and make contact with the conductor. This is a production-friendly method for high-volume harness assembly, provided the cable is within the specified 26-28 AWG range. The female socket contacts are plated with 24.0µin (0.61µm) palladium-nickel, a finish that offers a practical balance of corrosion resistance and mating cycle durability for internal, non-severe environments.
