Molex 0903273318 — Panel-Mount & In-Line Circular

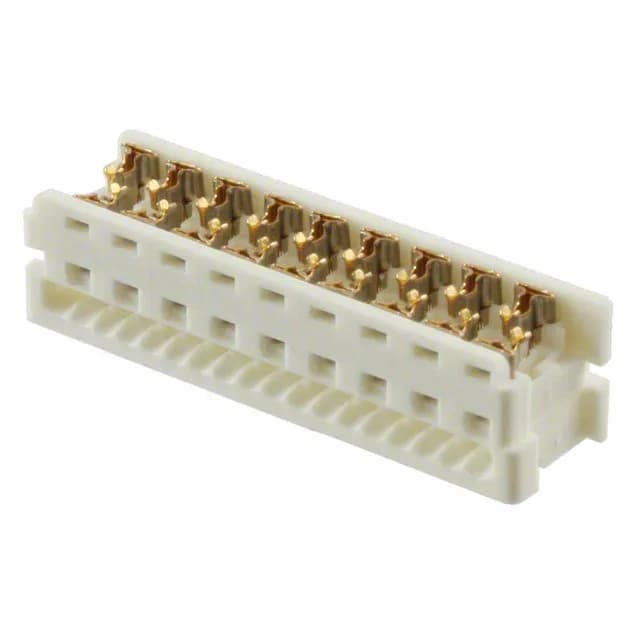

Molex Picoflex PF-50 0903273318, 18-Position IDC Receptacle

MPN0903273318
Active

Molex Picoflex PF-50 90327 series, receptacle, 18 positions, 2 rows, 0.100" (2.54mm) pitch, IDC termination, 26-28 AWG ribbon cable, Palladium-Nickel contacts, free hanging.

$4.7500Ref. price · indicative, final on quote
Molex 0903273318 datasheet (PDF)
RoHSROHS3 Compliant
SeriesPicoflex PF-50 90327
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

0903273318 specifications
ParameterValue
SeriesPicoflex PF-50 90327
Wire typeRibbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge26-28 AWG
Cable terminationIDC
ColorWhite
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through
Contact finishPalladium-Nickel
Rows2
Positions18
Contact finish thickness24.0µin (0.61µm)

Product details

Picoflex PF-50 IDC Receptacle, 18 Circuits

The Molex 0903273318 is an 18-position IDC receptacle from the Picoflex PF-50 90327 series, designed for mass-termination to 26-28 AWG ribbon cable.

Termination and Cable Compatibility

The IDC termination is designed for 26-28 AWG ribbon cable — the insulation displacement slots pierce the conductor insulation in one press operation, no stripping or crimping required. The feed-through feature means the cable passes straight through the connector body, allowing daisy-chain or pass-through wiring in harness layouts. A standard IDC hand press or pneumatic tool with the correct die set for Picoflex PF-50 pitch is needed for assembly; the connector ships in bulk, so tooling setup is a one-time line prep.

Frequently asked questions

What cable is compatible with Molex 0903273318?

This IDC receptacle is designed for 26-28 AWG ribbon cable with 0.100" (2.54mm) conductor spacing. The insulation displacement contacts terminate all conductors simultaneously in one press operation.
