26-Position IDC Receptacle for 0.100" Ribbon Cable

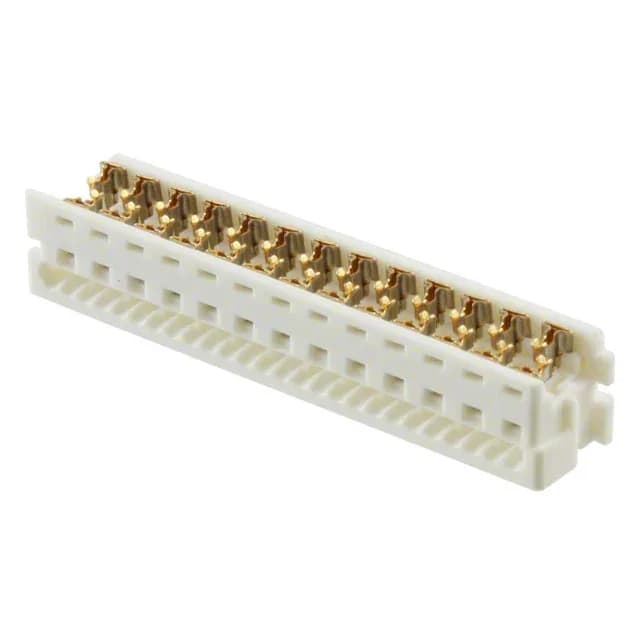

The Molex 0903273326 is a 26-position IDC receptacle from the Picoflex PF-50 90327 series, designed for mass-termination to 0.100" (2.54mm) pitch ribbon cable. It accepts 26-28 AWG ribbon cable and terminates via insulation displacement, eliminating per-wire crimping. The dual-row, 2-row layout matches standard 26-conductor ribbon cable pinouts. Palladium-nickel contact finish at 24.0µin (0.61µm) provides a hard, low-friction surface for reliable IDC termination and repeated mating cycles. The white housing aids visual polarity identification in harness assemblies.
No stripping or crimping per wire is needed, which speeds harness assembly. The feed-through feature allows daisy-chaining multiple receptacles on the same ribbon cable run, enabling parallel connections to several boards from one cable.
