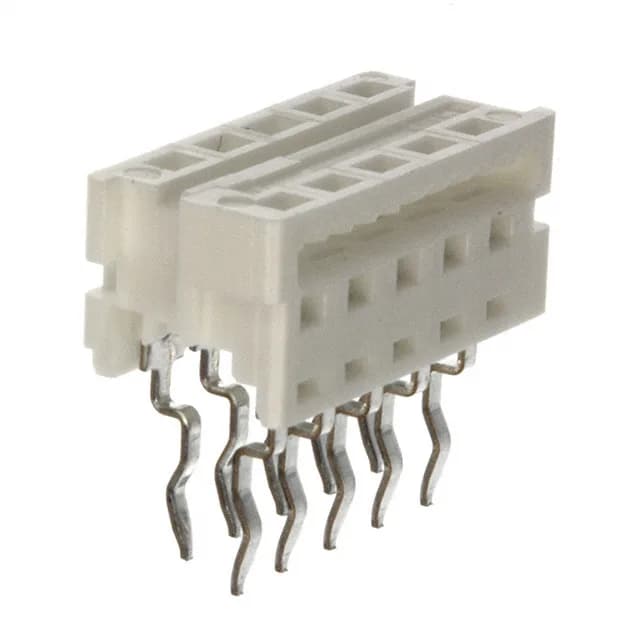

The Molex 0905841310 is a 10-position DIP header from the Picoflex 90584 series, designed for IDC termination to ribbon cable. It mates with the matching Picoflex receptacle housing to form a board-to-wire interconnect that is common in internal signal routing inside industrial controls, test equipment, and peripheral I/O.
Termination and Wiring
This header terminates ribbon cable via IDC — the insulation displacement contacts pierce 26-28 AWG stranded wire in a single press operation. The through-hole, press-fit mounting style means the header is inserted into plated through-holes on the PCB and held by interference fit; no solder is required, which simplifies assembly and makes rework possible if a pin is damaged.
