Molex 1200768034

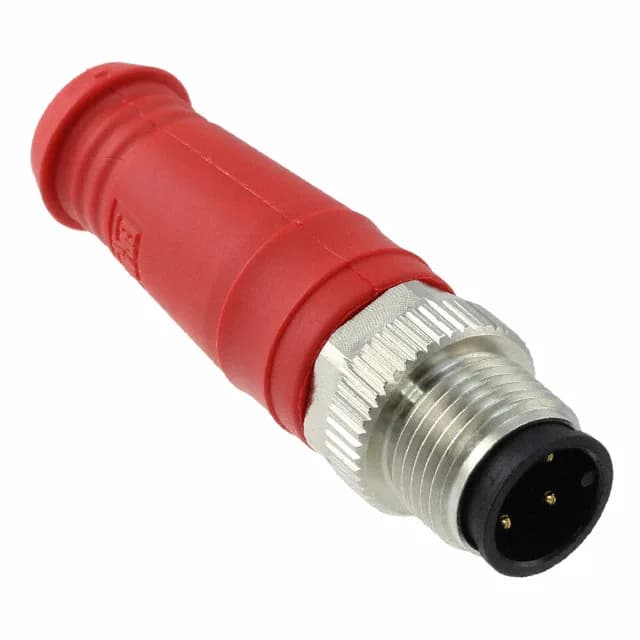

Molex 1200768034 Brad Safety Micro-Change M12 Plug, 4-Pin

MPN 1200768034
Active

Molex Brad Safety Micro-Change 120076 M12 A-coded plug, 4 male pins, gold contacts, 4A, 250VAC/DC, IP67, threaded coupling, free-hanging.

$13.6700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesBrad Safety Micro-Change 120076
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1200768034 key specifications
ParameterValue
SeriesBrad Safety Micro-Change 120076
MountingFree Hanging (In-Line)
Connector typePlug, Male Pins
Fastening typeThreaded
Voltage rating250VAC/DC
Current rating4A
IP ratingIP67 - Dust Tight, Waterproof
Operating temperature-25°C ~ 90°C
ColorRed, Silver
Shell materialBrass
Insert materialPolyurethane (PUR)
Contact materialCopper Alloy

All specifications

1200768034 additional specifications
ParameterValue
Primary materialMetal
Backshell material, platingThermoplastic Polyurethane (TPU)
PackageBulk
FeaturesBackshell, Ground
OrientationA
ApplicationsIndustrial
Shell finishNickel
Positions4
Shell size - insertM12-4
Contact finish - matingGold

Product details

M12 A-Coded Plug, 4-Pin, IP67 — Field-Attachable Male Connector

The Molex 1200768034 is a Brad Safety Micro-Change 120076 series M12 A-coded plug with 4 male pins, gold-plated contacts, and a threaded coupling nut. The IP67 rating means the mated pair is dust-tight and protected against temporary water immersion — suited for washdown environments, machine tool enclosures, and outdoor junction boxes. The M12-4 shell size uses the standard M12 x 1.0 thread, so it mates with any standard M12 A-coded receptacle or cordset.

Threaded Coupling and Sealing — Vibration and Washdown Rated

The threaded fastening (M12 x 1.0) locks the plug to the receptacle with a positive mechanical grip — no accidental disconnection under machine vibration. The nickel-plated brass shell and polyurethane (PUR) insert resist industrial oils and coolants. The IP67 seal holds when the connector is fully mated and the coupling nut is torqued to the manufacturer's specification. Operating temperature from -25°C to 90°C covers most indoor industrial cabinets and outdoor enclosures in temperate climates.

4A per Contact, 250V — Sensor and Actuator Power

Rated 4A per contact at 250VAC/DC, this plug handles the power requirements of most industrial proximity sensors, photoelectric cells, and solenoid valves. The gold-plated mating contacts (Copper Alloy base) provide corrosion resistance and maintain low contact resistance over repeated mating cycles — important for field-service connectors that see frequent disconnect/reconnect. The 4-position count matches the standard M12 A-coded pinout (1: brown, 2: white, 3: blue, 4: black) used in 4-wire sensor cables.

MPN
1200768034
