Product Introduction

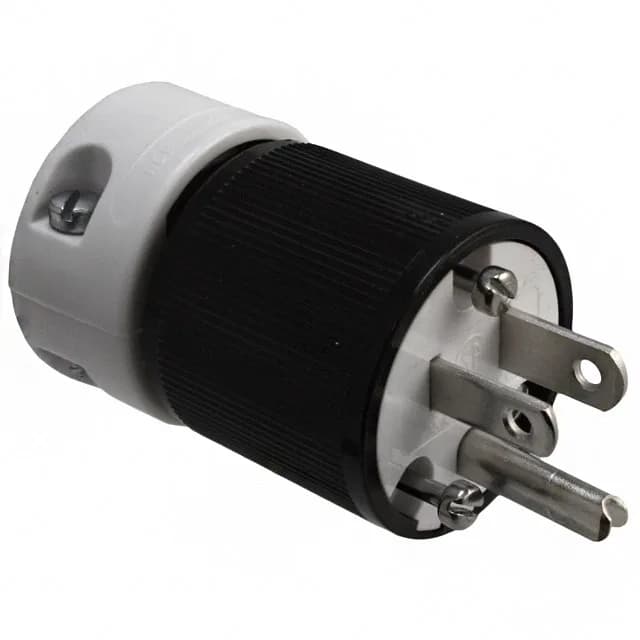

The Molex Safeway 1301440078 is a NEMA 5-15P male plug, the 3-position grounded member of the Safeway 130144 series. It is designed for AC power entry applications, providing a free-hanging inline connection with screw termination and a cord-clamp strain relief for secure cable retention. Typical use is in portable power cords, extension cords, and light-duty industrial equipment where a standard 15 A, 125 V grounded plug is required.
Rated 15 A at 125 V, this plug matches the standard North American branch-circuit rating. The 15 A rating is the continuous current capacity per the UL/CSA listing; the 125 V is the maximum line-to-neutral voltage. The screw termination accepts field-stripped conductors — no crimp tool needed, which simplifies field replacement. The cord-clamp strain relief grips the cable jacket to prevent pull-out forces from reaching the screw terminals.
Approvals and Compliance
CSA and UL listed, so the plug is accepted for North American installations where those marks are required. ROHS3 compliant, meeting the latest EU restriction on hazardous substances.
