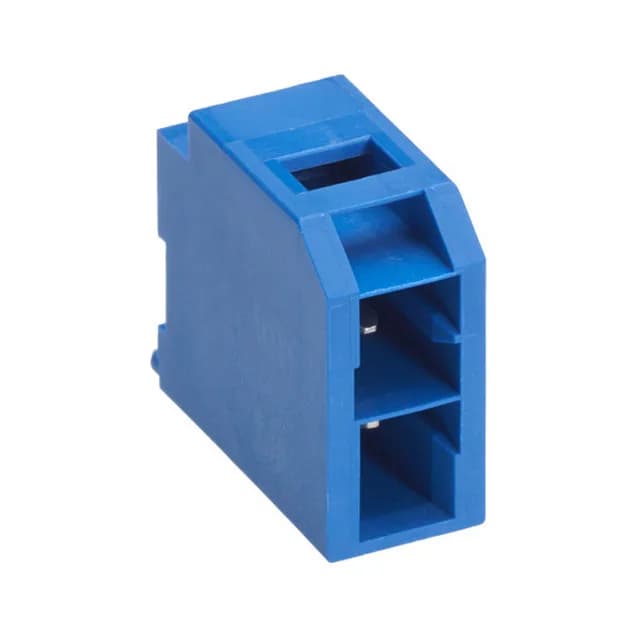

Molex CP-6.5 151048 series header, 1510482201, 2-position, 2-row, through hole, shrouded - 4 wall, latch holder, tin-plated contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | CP-6.5 151048 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Copper Alloy |
| Insulation color | Blue |
| Insulation height | 0.630\" (16.00mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 2 |
| Positions | 2 |
| Row spacing - mating | 0.256\" (6.50mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.348\" (8.85mm) |
| Contact finish thickness - mating | 50.0µin (1.27µm) |
The insulation is glass-filled polyamide (nylon) rated UL94 V-0, colored blue.
The header has a mating contact length of 0.348" (8.85mm) and a post length of 0.150" (3.81mm). The insulation height is 0.630" (16.00mm), and the row spacing is 0.256" (6.50mm). All 2 positions are loaded. Termination is via kinked pin, solder, and the package is tube.
This is a board-to-cable/wire header. It mates with a CP-6.5 series receptacle housing (sold separately). Confirm the circuit count and pitch match before ordering.
