Molex 1510492201 — Connector Housings

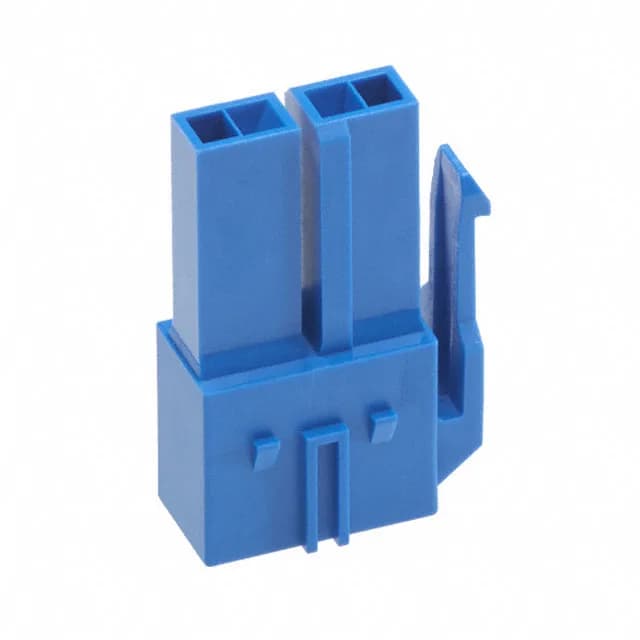

Molex CP-6.5 1510492201, 2-Position Receptacle Housing, Blue

MPN1510492201
Active

Molex CP-6.5 151049 series receptacle housing, 1510492201, 2 circuits, 2 rows, 6.50 mm row spacing, latch lock, free-hanging, crimp termination, blue PBTP, RoHS3.

$0.2700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCP-6.5 151049
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1510492201 specifications
ParameterValue
SeriesCP-6.5 151049
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-40°C ~ 105°C
ColorBlue
Insulation materialPolybutylene Terephthalate (PBTP)
NoteContacts Not Included
PackageBulk
Row spacing0.256\" (6.50mm)
Rows2
Contact terminationCrimp
Positions2

Product details

The Molex 1510492201 is a 2-circuit receptacle housing from the CP-6.5 151049 series, designed for free-hanging (in-line) wire-to-wire or wire-to-board harness applications where a positive latch lock is needed to keep the pair mated under vibration.

2 circuits, 2 rows, 6.50 mm row spacing

Two positions in two rows means one contact per row. The 6.50 mm row spacing gives each terminal pocket enough physical separation to handle the current the CP-6.5 contact family is rated for — the housing itself does not limit the current; the crimp terminal and wire gauge do.

You need the matching Molex CP-6.5 female crimp terminal (order code 0450102001 or the equivalent from the 045010 series) and a suitable hand or pneumatic crimp tool. The terminal is a socket that inserts into the housing cavity and locks with a retention lance. The mating half is the CP-6.5 male header (e.g. 1510492101 for a 2-circuit version) or a male plug housing with the same latch geometry.

Frequently asked questions

What contacts are compatible with Molex 1510492201?

The housing accepts Molex CP-6.5 female crimp socket terminals (order code 0450102001 or the equivalent from the 045010 series). Contacts are not included with the housing.

What is the mating connector for 1510492201?

The mating half is a CP-6.5 male header (e.g. 1510492101 for a 2-circuit version) or a male plug housing with the same latch geometry. The latch lock on the receptacle engages with the corresponding ramp on the header.

Is Molex 1510492201 RoHS compliant?

Yes, it is ROHS3 compliant.

Where can I buy Molex 1510492201?

This part is sourced to order.
